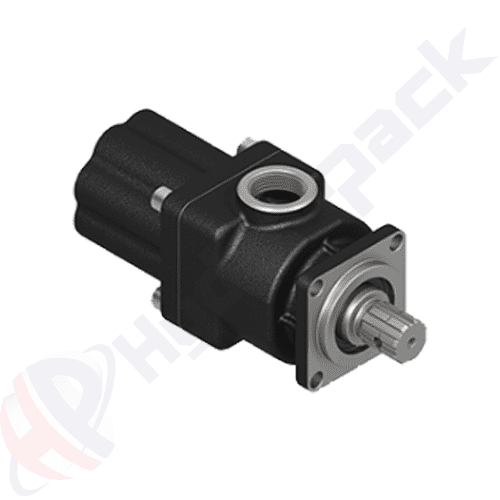

KAVI Series Piston Pumps (9 Piston)


Displacement: 60 and 80 cc/rev
Max. cont. pressure: 270 bar
Max. cont. speed: 1500 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)

  • Bidirectional

Click for PDF catalogue

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer wide range of cast iron gear pumps and piston pumps with different specifications for trucks and mobile applications.

Code Displacement
cc/rev
Max. continuous pressure
bar
Max. continuous speed
rpm
Front cover
ISO KAVI 60 BD A 60 270 1500 4 holes ISO flange
ISO KAVI 80 BD A 80 270 1500 4 holes ISO flange
BD: Bidirectional
A series bush steel crank
Please check technical catalogue for dimensions and other options
