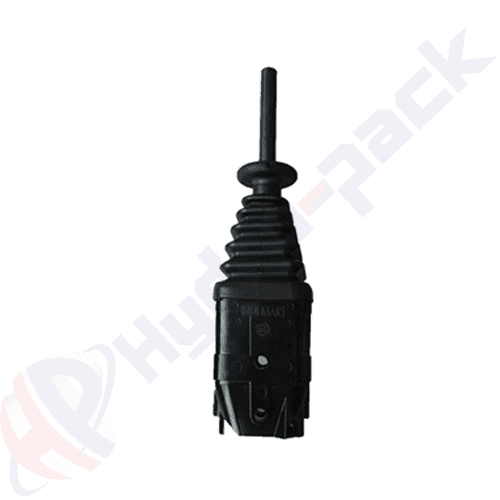

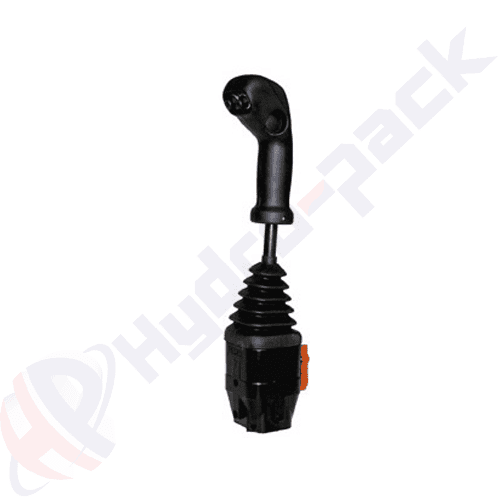

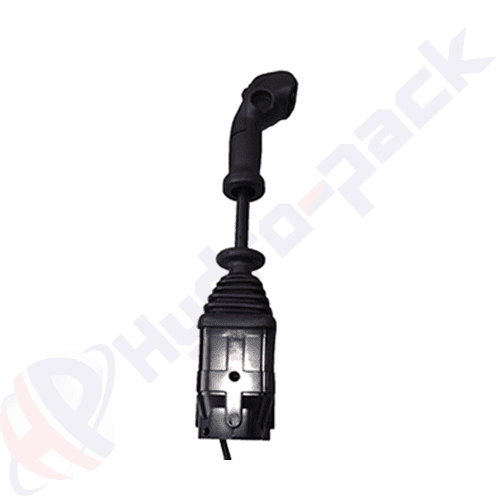

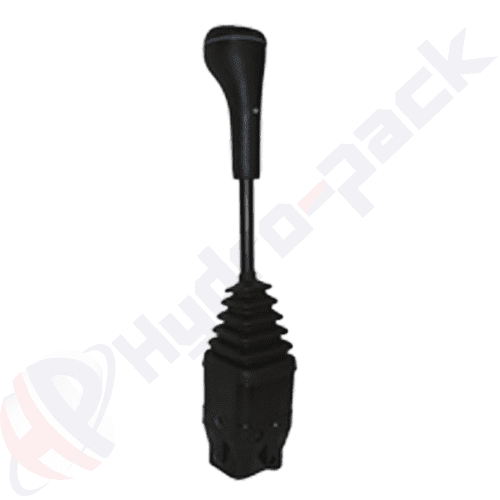

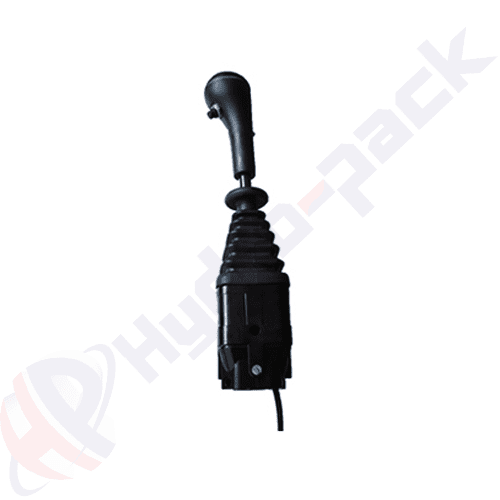

Joystick Control for Directional Control Valves

Features:

  • Easy assembly
  • Heavy duty cables ensure efficiency and long working life
  • Different designs with buttons for various applications
  • Widely used in mobile and agriculture applications

Click for PDF catalogue

Click for PDF catalogue(Cable)

Hidros provide standard and heavy duty joysticks with compact design body suitable for directional control valves. The joysticks can be supplied together with high efficiency cables and widely used in agriculture applications.

Code Type Max. stroke Operating
temperature		 Cable code* Connection kit code
with plastic tube**		 Connection kit code
with metal tube**
ID-3320 Three buttons 28 mm -30…+80 IT-731133 FK-212082 FK-212123
ID-3335 With safety lock 28 mm -30…+80 IT-731133 FK-212082 FK-212123
ID-3336 Without lock 28 mm -30…+80 IT-731133 FK-212082 FK-212123
ID-3369 Two buttons with lock 28 mm -30…+80 IT-731133 FK-212082 FK-212123
ID-3371 Lateral lock 28 mm -30…+80 IB-431216 FK-212082 FK-212123
ID-3375 One button with lateral lock 28 mm -30…+80 IB-431216 FK-212082 FK-212123
ID-3389 One button with lock 28 mm -30…+80 IT-731133 FK-212082 FK-212123
ID-3390 One button with lock 28 mm -30…+80 IT-731133 FK-212082 FK-212123
ID-3398 Without handle with lock 28 mm -30…+80 IT-731133 FK-212082 FK-212123
ID-6008 Two buttons with lateral lock 28 mm -30…+80 IB-431216 FK-212082 FK-212123
ID-6009 Three buttons with lock 28 mm -30…+80 IT-731133 FK-212082 FK-212123
* Cable lengths are available from 0.5 meter to 6 meter.
** Connection kits are suitable for Hydropack directional control valves.

Joystick Assembly for control valves
