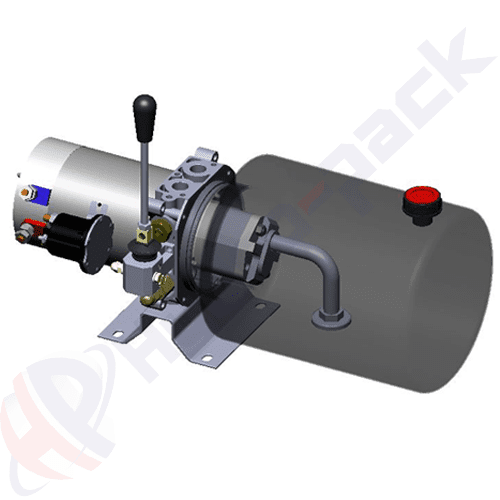

Hydraulic Power Packs for Electric Stacker


Electric motor: 1.6 kW 12 V
Pump: 1.3 cc/rev, 3.2 liter/min @ 2500 rpm
Oil tank: 8 liter cylinder tank, horizontal mounting
Max pressure: 220 bar

  • Suitable for single acting applications
  • Manuel lowering valve and flow control valve are integrated

Click for Technical Drawing

Click for user manual_EN  / Click for user manual_TR

Hydraulic power units (sometimes referred to as a hydraulic power pack) is a self-contained system that generally includes a motor, a fluid reservoir, and a pump. It works to apply the hydraulic pressure needed to drive motors, cylinders and other complementary parts of a given hydraulic system. Hidros provide mini power packs up to 5.5 kW in standard range. Hidros also offer wide range of solutions suitable for different applications such as tippers, dock levelers, car lifts, stackers, wheelchair lifts and more.

Specifications given above are for standard units and can change according to user demand. Please feel free to contact us.
