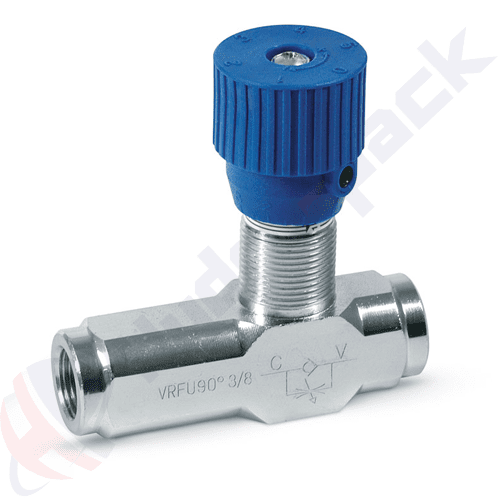

VRFU 90 Flow Regulator Valves with Check

Port sizes: From BSP 1/4’’ to BSP 1’’
Max. flow: From 15 liter/min up to 110 liter/min
Max. pressure: From 300 bar up to 350 bar
Cracking pressure: 0.5 bar

Click for PDF catalogue

VRFU 90 series flow regulator valves are used to adjust flow speed of actuators in one direction; flow is free in the reverse one. They have integrated check valves.

As pressure compensation is not provided, flow adjustment depends on pressure and fluid viscosity.

They can be used on single acting cylinders to adjust return flow.

Code Type Max. flow
liter/min		 Max. pressure
bar		 Standard cracking pressure
bar
V0581 VRFU 90 1/4” 15 350 0.5
V0582 VRFU 90 3/8” 30 350 0.5
V0583 VRFU 90 1/2” 50 350 0.5
V0588 VRFU 90 3/4” 80 320 0.5
V0576 VRFU 90 1” 110 300 0.5
