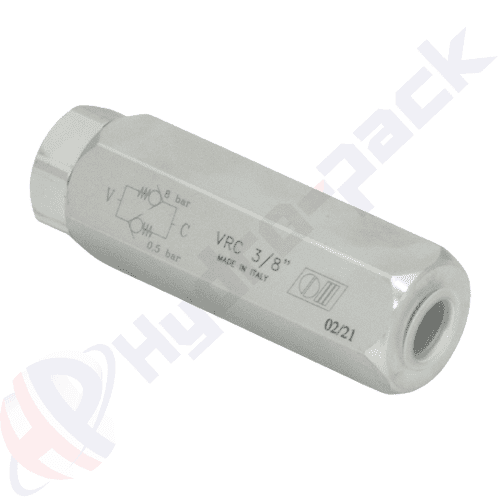

VRC Series Check Valves


Port sizes: BSP 3/8’’ and BSP 1/2’’
Max. flow: From 35 liter/min up to 55 liter/min
Max. pressure: 350 bar

blankClick for PDF catalogue

A check valve is the simplest type of directional control valve used in hydraulic systems. Check valves stop the flow of fluid in one direction and allow free flow in the opposite direction. They are also known as non-return valves.

In VRC series check valves, flow is controlled in both directions at different pressure setting.

Code Type Max. flow
liter/min
Max. pressure
bar
Standard cracking pressure
bar
V0606 VRC 3/8″ 35 350 0.5 & 8
V0616 VRC 1/2″ 55 350 0.5 & 8
