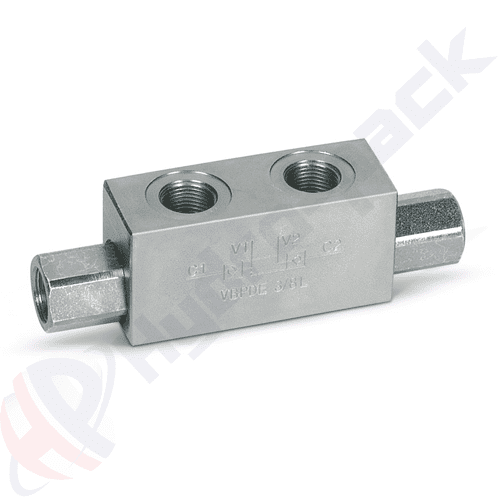

VBPDE Series Double Pilot Operated Check Valves


Port sizes: From BSP 1/4’’ to BSP 3/4’’
Max. flow: From 20 liter/min up to 100 liter/min
Max. pressure: From 300 bar up to 350 bar

Click for PDF catalogue

A check valve is the simplest type of directional control valve used in hydraulic systems. Check valves stop the flow of fluid in one direction and allow free flow in the opposite direction. They are also known as non-return valves.

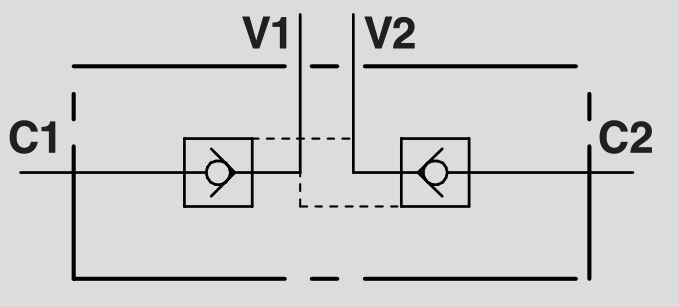

These valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.

They are used on double acting cylinders.

Code Type Max. flow
liter/min
Max. pressure
bar
Standard cracking pressure
bar
V0010 VBPDE 1/4” L 20 350 4
V0020 VBPDE 3/8” L 35 350 3
V0030 VBPDE 1/2” L 50 350 6
V0050 VBPDE 3/8” 45 350 8
V0061 VBPDE 18 L 35 350 4
V0070 VBPDE 1/2” 70 350 3.5
V0040 VBPDE 3/4” 100 300 2
