VAUAC series crossover relief valve with anti-cavitation checks


Port size: From BSP 3/8’’ to BSP 3/4’’
Max. flow: From 45 liter/min up to 110 liter/min
Max. pressure: 350 bar
Standard pressure setting range is 10-180 bar, valves are set at 90 bar. (for 3/8” and 1/2”) Please contact us for different setting ranges.

blankClick for PDF catalogue

Pressure relief valves are used in hydraulic systems to limit the system pressure to a specific set level.

If this set level is reached, the pressure relief valve responds and feeds the excess flow from the system back to oil tank.

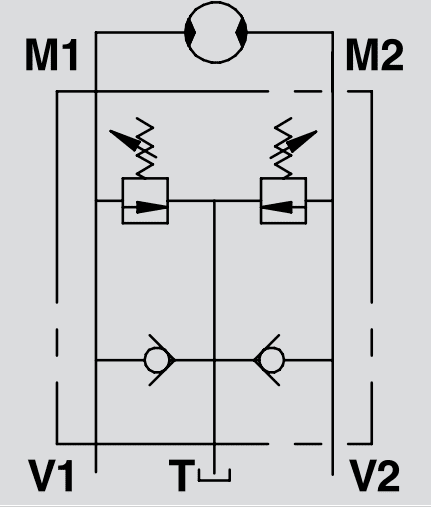

Hidros provide inline pressure relief valves with different setting ranges. VAUAC series valves provide overload protection in a fast, accurate way and cavitation is prevented thanks to integrated check valves. It is suggested to assemble check valve line to tank port.

Code Type Max. flow
liter/min
Max. pressure
bar
V0507 VAUAC 3/8″ 45 350
V0508 VAUAC 1/2″ 70 350
V0510 VAUAC 3/4″ 110 350
* Standard pressure setting range is 10-180 bar, valves are set at 90 bar. (for 3/8″ and 1/2″)
Please contact us for different setting ranges.
