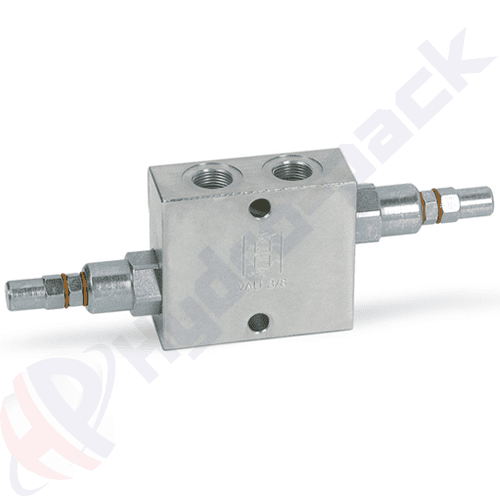

VAU Series Dual Crossover Relief Valves


Port size: From BSP 1/4’’ and BSP 3/4’’
Max. flow: From 30 liter/min up to 110 liter/min
Max. pressure: 350 bar
Standard pressure setting range is 10-180 bar, valves are set at 90 bar. Please contact us for different setting ranges.

Click for PDF catalogue

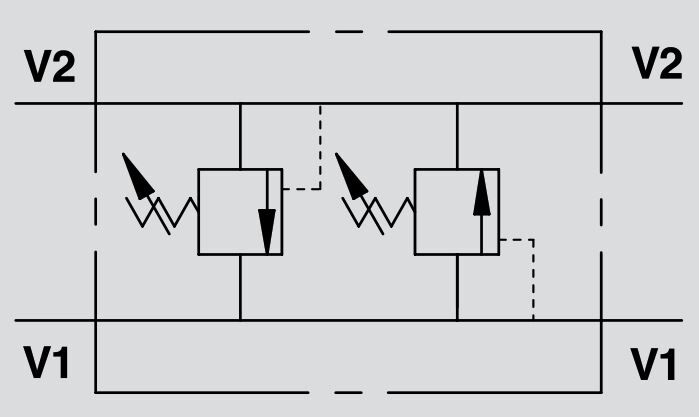

Valve block consists of two relief valves. It enables to keep the pressure setting of outlet in cylinder/hydraulic motor in a certain value.

They are ideal for preventing shock pressure or two different setting is needed on different lines.

These valves also enable cushioning on cylinder.

Code Type Max. flow
liter/min
Max. pressure
bar
V0438 VAU 1/4” 30 350
V0440 VAU 3/8” 45 350
V0450 VAU 1/2” 70 350
V0460 VAU 3/4” 110 350
* Standard pressure setting range is 10-180 bar, valves are set at 90 bar.
Please contact us for different setting ranges.
