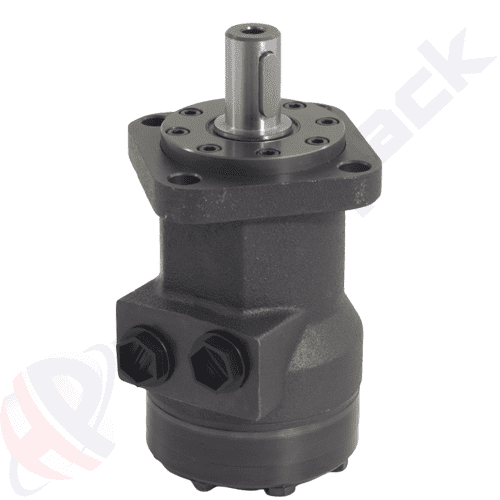

RL Series Hydraulic Motors


RL Series: RL50C,RL80C,RL100C,RL125C,RL160C,RL200C,RL250C,RL315C,RL400C

Max. displacement: Up to 397 cc/rev
Max. torque: 61 daNm (Cont. operation), 69 daNm (Intermittent operation)
Max. output power: 16 kW
Max. pressure drop: 175 bar (Cont. operation), 200 bar (Intermittent operation)
Max. oil flow: 75 liter/min,
Min. speed: 10 rpm

Click for PDF catalogue

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. In RL series, the rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures.

Code Displacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
RL50C 51.5 775 10 140 40 175
RL80C 80.3 750 19.5 175 60 175
RL100C 99.8 600 24 175 60 175
RL125C 125.7 475 30 175 60 175
RL160C 159.6 375 38 175 60 175
RL200C 199.8 300 45 175 60 175
RL250C 250.1 240 54 175 60 175
RL315C 315.7 190 55 135 60 175
RL400C 397 150 61 110 60 175
* values are for continuous operation
Motors have 25 mm. straight shaft with parallel key as standard
Please check technical catalogue for dimensions and other options
