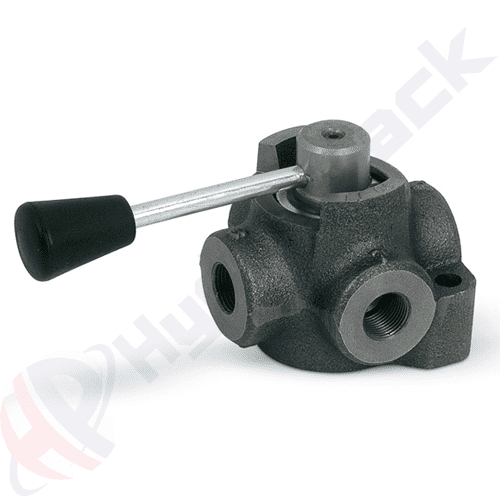

IF 4 VIE Series 4 Way Hydraulic Diverter Valves

Port sizes: From BSP 3/8’’ up to BSP 3/4”
Max. flow: From 60 liter/min up to 120 liter/min
Max. pressure: From 250 bar up to 300 bar

Click for PDF catalogue

Hydraulic rotary diverter valves are used to divert the inlet flow towards different outlets. Normally open and normally closed models are available.

IF 4 series valves are used to reverse oil flow from two inlets to two outlets. They can be used to control double acting actuators or to reverse the rotation of hydraulic motors.

Code Type Max. flow
liter/min		 Max. pressure
bar
V0970 IF 4 VIE 3/8″ 60 300
V0980 IF 4 VIE 1/2″ 90 250
V0990 IF 4 VIE 3/4″ 120 250
* Neutral position is closed center as standard. For open center models please contact us.
