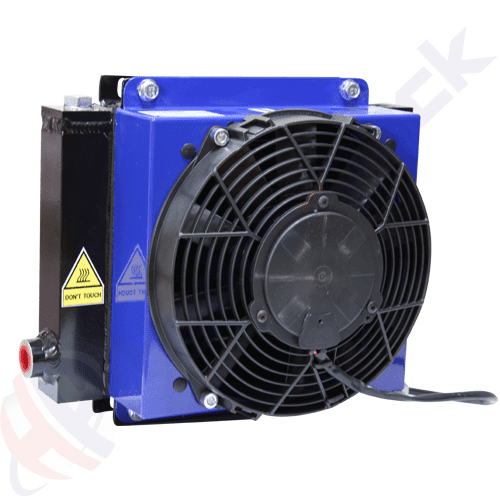

HY100 Series Oil Coolers with DC Driven Fan


  • Oil coolers with DC driven fans
  • From 2.5 liter/min up to 190 liter/min flow rate
  • 12 V or 24 V voltage options
  • 72-75 dB noise level
  • Anti-blockage turbulators
  • Epoxy painted
  • Radiator side is aluminum alloy
  • With fixed thermostat (60/48 oC as standard)
  • Interchangeable with most common brands
  • working pressure is 24 bar

Click for PDF catalogue

Hydraulic oil coolers are used to cool hydraulic fluid circulating in the system. Coolers also reduce deterioration of hydraulic oil and enable performance improvement. In HY100 series, air is blowed over the fan and heat exchange is provided between fluid and air. Fluid will cool as it loses heat.

Code Oil flow
liter/min
Capacity
kcal/h
Voltage
V
HY01002 10-50 2000 12
HY01602 10-90 5500 12
HY01802 20-140 6000 12
HY02402 20-140 12000 12
HY03802 20-140 20000 12
HY05702 20-160 25000 12
HY10502 30-190 40000 12
HY01004 10-50 2000 24
HY01604 10-90 5500 24
HY01804 20-140 6000 24
HY02404 20-140 12000 24
HY03804 20-140 20000 24
HY05704 20-160 25000 24
HY10504 30-190 40000 24
