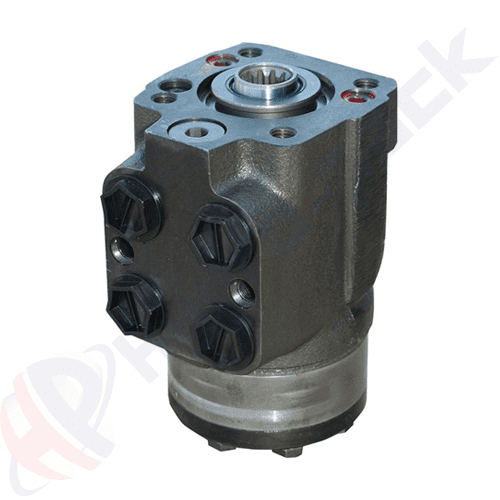

HKUS…/7 Series


Max. displacement: Up to 400 cc/rev
Hydraulic circuit: Closed center, non load reaction
Rated pressure: From 125 bar up to 175 bar
Max. oil flow: Up to 40 liter/min

blankClick for PDF catalogue

Hydrostatic steering is an hydraulic steering system that does not require mechanical steering linkage. In place of mechanical linkage, a steering unit and steering cylinders along with flexible hoses are used.

Hidros provide steering units which are used in industrial vehicles, agricultural tractors, marine ships, constructional equipment and servo-type systems where directional steering is needed.

HKUS series steering units are based on the HKU series units but have built-in relief and check valves. They enable very compact system which reduces the need for additional hydraulic components.

Code Displacement
cc/rev
Rated flow
liter/min
Rated pressure
bar
HKUS40/7 39.6 4 125
HKUS50/7 49.5 5 140
HKUS63/7 65.6 6 170
HKUS80/7 79.2 8 170
HKUS100/7 99 10 170
HKUS125/7 123.8 13 170
HKUS160/7 158.4 16 170
HKUS200/7 198 20 170
HKUS250/7 247.5 25 170
HKUS320/7 316.8 32 170
HKUS400/7 396 40 170
* Shock valve pressure setting is 220 bar.
