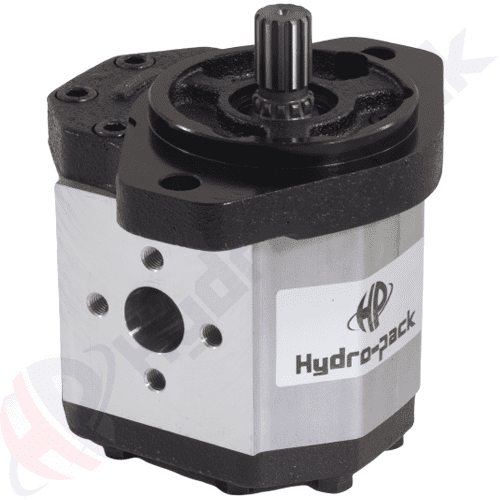

H30A(C)…X236

Displacement: From 20 cc/rev up to 60 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3000 rpm
Fluid temperature range: -10 ^oC … +80 ^oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm

Click for PDF catalogue

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 30 hydraulic pumps with different specifications.

Code	Displacement cc/rev	P1 pressure bar	Max. speed rpm	Rotation from shaft view
H30A20X236H \| 30A20X236H	20	250	3000	Anti-clockwise
H30C20X236H \| 30C20X236H	20	250	3000	Clockwise
H30A22.5X236H \| 30A22.5X236H	22.5	250	3000	Anti-clockwise
H30C22.5X236H \| 30C22.5X236H	22.5	250	3000	Clockwise
H30A25X236H \| 30A25X236H	25	250	3000	Anti-clockwise
H30C25X236H \| 30C25X236H	25	250	3000	Clockwise
H30A28X236H \| 30A28X236H	28	250	3000	Anti-clockwise
H30C28X236H \| 30C28X236H	28	250	3000	Clockwise
H30A32X236H \| 30A32X236H	32	250	3000	Anti-clockwise
H30C32X236H \| 30C32X236H	32	250	3000	Clockwise
H30A36X236H \| 30A36X236H	36	250	2800	Anti-clockwise
H30C36X236H \| 30C36X236H	36	250	2800	Clockwise
H30A42X236H \| 30A42X236H	42	230	2500	Anti-clockwise
H30C42X236H \| 30C42X236H	42	230	2500	Clockwise
H30A46X236H \| 30A46X236H	46	230	2300	Anti-clockwise
H30C46X236H \| 30C46X236H	46	230	2300	Clockwise
H30A50X236H \| 30A50X236H	50	200	2000	Anti-clockwise
H30C50X236H \| 30C50X236H	50	200	2000	Clockwise
H30A55X236H \| 30A55X236H	55	200	1750	Anti-clockwise
H30C55X236H \| 30C55X236H	55	200	1750	Clockwise
H30A60X236H \| 30A60X236H	60	180	1750	Anti-clockwise
H30C60X236H \| 30C60X236H	60	180	1750	Clockwise
