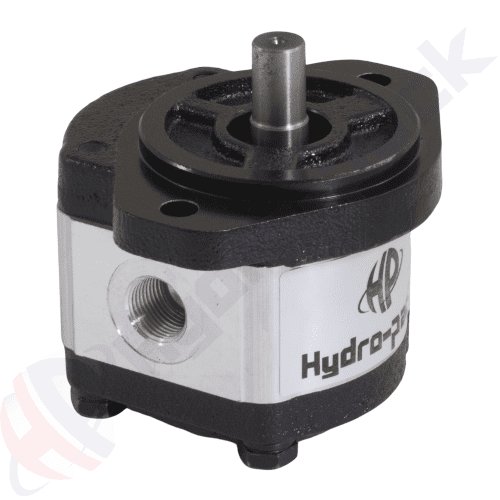

H20A(C)…X030


Displacement: From 4.5 cc/rev up to 28 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm

*Ports are Metric threaded ports as standard. For BSP threaded ports, ordering code should be 20A(C )…X030G, for UNF threaded ports, ordering code should be 20A(C )…X030U.

 Click for PDF catalogue

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 20 hydraulic pumps with different specifications.

Code Displacement
cc/rev
P1 pressure
bar
Max. speed
rpm
Rotation from shaft view
H20A4.5X030 4.5 250 3500 Anti-clockwise
H20C4.5X030 4.5 250 3500 Clockwise
H20A6.3X030 6.3 250 3500 Anti-clockwise
H20C6.3X030 6.3 250 3500 Clockwise
H20A8.2X030 8.2 250 3500 Anti-clockwise
H20C8.2X030 8.2 250 3500 Clockwise
H20A10X030 10 250 3500 Anti-clockwise
H20C10X030 10 250 3500 Clockwise
H20A11X030 11 250 3500 Anti-clockwise
H20C11X030 11 250 3500 Clockwise
H20A12X030 12 250 3500 Anti-clockwise
H20C12X030 12 250 3500 Clockwise
H20A14X030 14 250 3500 Anti-clockwise
H20C14X030 14 250 3500 Clockwise
H20A15X030 15 250 3000 Anti-clockwise
H20C15X030 15 250 3000 Clockwise
H20A16X030 16 250 2500 Anti-clockwise
H20C16X030 16 250 2500 Clockwise
H20A19X030 19 200 2500 Anti-clockwise
H20C19X030 19 200 2500 Clockwise
H20A22X030 22 180 2000 Anti-clockwise
H20C22X030 22 180 2000 Clockwise
H20A25X030 25 160 2000 Anti-clockwise
H20C25X030 25 160 2000 Clockwise
*Ports are Metric threaded ports as standard.
For BSP threaded ports, ordering code should be 20A(C )…X016G.
