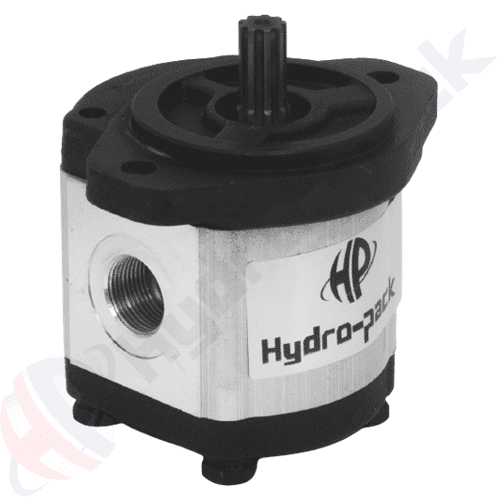

H20A(C)…X292G

Displacement: From 4.5 cc/rev up to 28 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temperature range: -10 ^oC … +80 ^oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm

Ports are BSP threaded ports as standard.

Click for PDF catalogue

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 20 hydraulic pumps with different specifications.

Code	Displacement cc/rev	P1 pressure bar	Max. speed rpm	Rotation from shaft view
H20A4.5X292G \| 20A4.5X292G	4.5	250	3500	Anti-clockwise
H20C4.5X292G \| 20C4.5X292G	4.5	250	3500	Clockwise
H20A6.3X292G \| 20A6.3X292G	6.3	250	3500	Anti-clockwise
H20C6.3X292G \| 20C6.3X292G	6.3	250	3500	Clockwise
H20A8.2X292G \| 20A8.2X292G	8.2	250	3500	Anti-clockwise
H20C8.2X292G \| 20C8.2X292G	8.2	250	3500	Clockwise
H20A10X292G \| 20A10X292G	10	250	3500	Anti-clockwise
H20C10X292G \| 20C10X292G	10	250	3500	Clockwise
H20A11X292G \| 20A11X292G	11	250	3500	Anti-clockwise
H20C11X292G \| 20C11X292G	11	250	3500	Clockwise
H20A12X292G \| 20A12X292G	12	250	3500	Anti-clockwise
H20C12X292G \| 20C12X292G	12	250	3500	Clockwise
H20A14X292G \| 20A14X292G	14	250	3500	Anti-clockwise
H20C14X292G \| 20C14X292G	14	250	3500	Clockwise
H20A15X292G \| 20A15X292G	15	250	3000	Anti-clockwise
H20C15X292G \| 20C15X292G	15	250	3000	Clockwise
H20A16X292G \| 20A16X292G	16	250	2500	Anti-clockwise
H20C16X292G \| 20C16X292G	16	250	2500	Clockwise
H20A19X292G \| 20A19X292G	19	200	2500	Anti-clockwise
H20C19X292G \| 20C19X292G	19	200	2500	Clockwise
H20A22X292G \| 20A22X292G	22	180	2000	Anti-clockwise
H20C22X292G \| 20C22X292G	22	180	2000	Clockwise
H20A25X292G \| 20A25X292G	25	160	2000	Anti-clockwise
H20C25X292G \| 20C25X292G	25	160	2000	Clockwise
*Ports are BSP threaded ports as standard.

Categories: Group 20, Hydraulic Pumps Tags: gear pump, hydraulic pump, X292G
