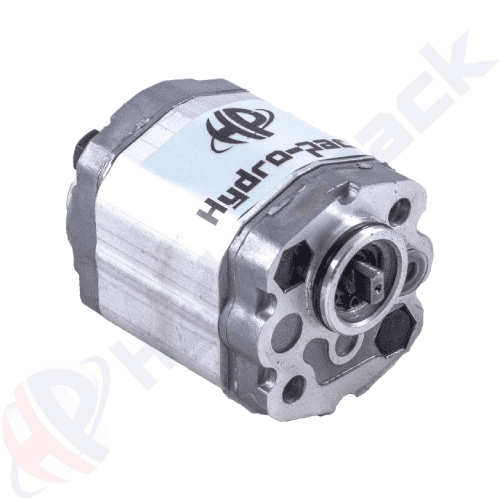

H10A(C)…X302

Displacement: From 0.8 cc/rev up to 9 cc/rev
Nominal pressure: Up to 230 bar
Max. speed: Up to 6000 rpm
Fluid temperature range: -10 ^oC … +80 ^oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 15-25 µm

Click for PDF catalogue

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 10 hydraulic pumps with different specifications.X302 Series hydraulic pumps are used in hydraulic mini power packs.

Code	Displacement cc/rev	P1 pressure bar	Max. speed rpm	Rotation from shaft view
H10A0.8X302 \| 10A0.8X302	0.8	230	6000	Anti-clockwise
H10C0.8X302 \| 10C0.8X302	0.8	230	6000	Clockwise
H10A1.1X302 \| 10A1.1X302	1.1	230	6000	Anti-clockwise
H10C1.1X302 \| 10C1.1X302	1.1	230	6000	Clockwise
H10A1.3X302 \| 10A1.3X302	1.3	230	6000	Anti-clockwise
H10C1.3X302 \| 10C1.3X302	1.3	230	6000	Clockwise
H10A1.8X302 \| 10A1.8X302	1.8	230	6000	Anti-clockwise
H10C1.8X302 \| 10C1.8X302	1.8	230	6000	Clockwise
H10A2.1X302 \| 10A2.1X302	2.1	230	6000	Anti-clockwise
H10C2.1X302 \| 10C2.1X302	2.1	230	6000	Clockwise
H10A2.7X302 \| 10A2.7X302	2.7	230	6000	Anti-clockwise
H10C2.7X302 \| 10C2.7X302	2.7	230	6000	Clockwise
H10A3.2X302 \| 10A3.2X302	3.2	210	5000	Anti-clockwise
H10C3.2X302 \| 10C3.2X302	3.2	210	5000	Clockwise
H10A3.7X302 \| 10A3.7X302	3.7	210	4500	Anti-clockwise
H10C3.7X302 \| 10C3.7X302	3.7	210	4500	Clockwise
H10A4.2X302 \| 10A4.2X302	4.2	210	4000	Anti-clockwise
H10C4.2X302 \| 10C4.2X302	4.2	210	4000	Clockwise
H10A4.8X302 \| 10A4.8X302	4.8	190	3500	Anti-clockwise
H10C4.8X302 \| 10C4.8X302	4.8	190	3500	Clockwise
H10A5.8X302 \| 10A5.8X302	5.8	190	3000	Anti-clockwise
H10C5.8X302 \| 10C5.8X302	5.8	190	3000	Clockwise
H10A7X302 \| 10A7X302	7	160	2500	Anti-clockwise
H10C7X302 \| 10C7X302	7	160	2500	Clockwise
H10A8X302 \| 10A8X302	8	130	2100	Anti-clockwise
H10C8X302 \| 10C8X302	8	130	2100	Clockwise
H10A9X302 \| 10A9X302	9	100	1800	Anti-clockwise
H10C9X302 \| 10C9X302	9	100	1800	Clockwise

Categories: Group 10, Hydraulic Pumps Tags: 10A(C)...X302, GROUP10
