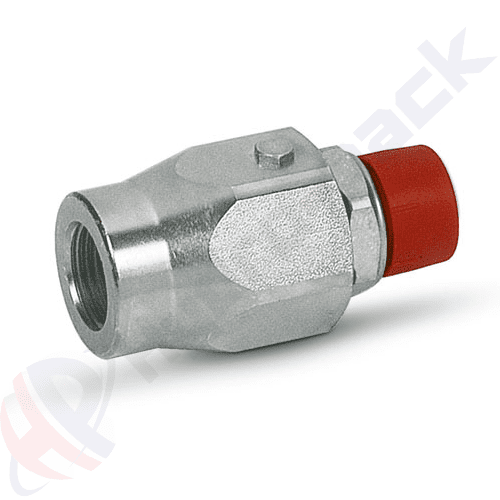

GGL Series Rotating Couplings

Port size: From BSP 1/4’’ to BSP 2’’
Max. flow: From 25 liter/min up to 700 liter/min
Max. pressure: From 250 bar up to 400 bar

Click for PDF catalogue

These valves are mounted between the end of a flexible hose and a fixed component to compensate hose’s rotations and torsions to prevent its damaging. (Not suitable for fast and continuous rotations)

Code Type Max. flow
liter/min		 Max. rotation pressure
bar		 Max. pressure
bar
G1050 GGL 1/4” 25 200 400
G1060 GGL 3/8” 35 200 400
G1070 GGL 1/2” 60 150 300
G1080 GGL 3/4” 100 150 300
G1090 GGL 1” 180 100 300
G1091 GGL 1” 1/4 270 100 300
G1092 GGL 1” 1/2 350 80 300
G1093 GGL 2” 700 50 250
