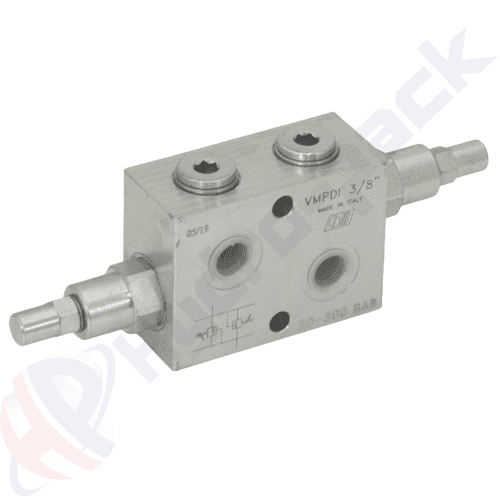

VMPDI series pressure relief valves


Port size: BSP 3/8’’ and BSP 1/2’’
Max. flow: From 45 liter/min up to 70 liter/min
Max. pressure: 350 bar
Standard pressure setting range is 10-180 bar, valves are set at 90 bar. Please contact us for different setting ranges.

blankClick for PDF catalogue

Pressure relief valves are used in hydraulic systems to limit the system pressure to a specific set level.

If this set level is reached, the pressure relief valve responds and feeds the excess flow from the system back to oil tank.

Hidros provide inline pressure relief valves with different setting ranges. VMPDI series have two port cross relief valves that limit the pressure in two ports of a cylinder/hydraulic motor to a certain setting. They are ideal to provide protection against sudden shock pressures. 6 ports (2 inlets and 4 reversible outlets) enable to use just one valve for two cylinders.

Code Type Max. flow
liter/min
Max. pressure
bar
V0737 VMPDI 3/8” 45 350
V0738 VMPDI 1/2” 70 350
* Standard pressure setting range is 10-180 bar, valves are set at 90 bar.
Please contact us for different setting ranges.
