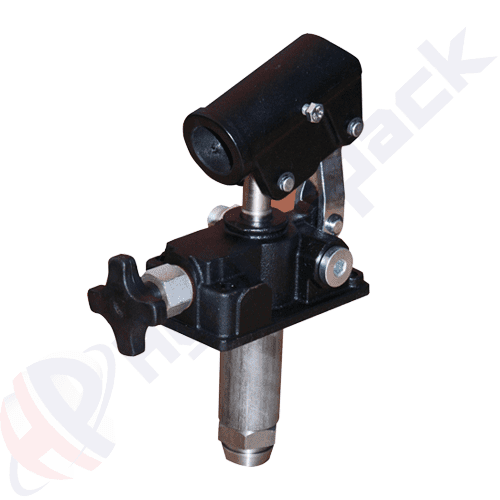

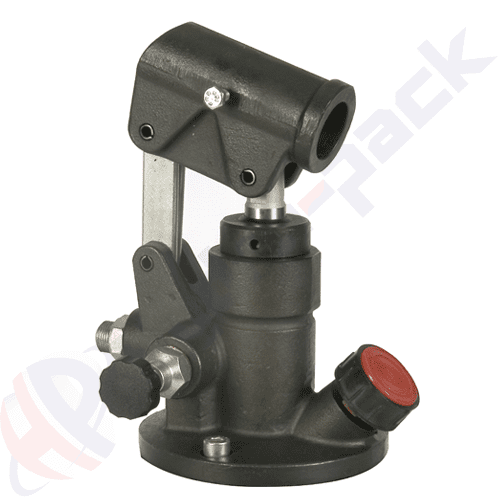

PRB Series Single Acting Hand Pumps

Working volume: 12, 18, 25 and 45 cc
Max. pressure: Up to 320 bar
Pressure relief valve and dust protection cover options
From 1 liter up to 10 liter steel oil tank options

Click for PDF catalogue

Hydraulic hand pumps provide hydraulic energy for many industrial applications working pressure up to 320 bar. They are compact and perfect choice if your system need hydraulic pressure.

Code Working volume
ccm		 Rated pressure
bar		 Function Oil tank assembly
PRB12 12 320 Double acting function for single acting cylinder Rectangular steel tank
PRB25 25 250 Double acting function for single acting cylinder Rectangular steel tank
PRB45 45 160 Double acting function for single acting cylinder Rectangular steel tank
PRP12 12 300 Single acting function for single acting cylinder Round steel tank
PRP15 15 250 Single acting function for single acting cylinder Round steel tank
PRP18 18 200 Single acting function for single acting cylinder Round steel tank
PRP25 25 160 Single acting function for single acting cylinder Round steel tank
PRBC20 20 250 Double acting function for single acting cylinder – (Fixing to wall)
* Hand pumps are supplied with levers
* Pressure relief valve, dust protection cover and fittings are optional parts. Please contact us.
