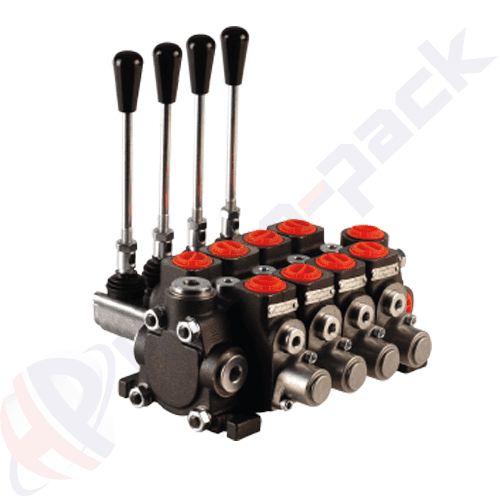

PC100 Series Sectional Directional Control Valves

Nominal flow rate: 80 liter/min (Max. flow 100 liter/min)
Max. Pressure: P: 210 bar, T: 50 bar, A-B: 250 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 8
Leakage: 18 cm³/min at 120 bar (From A,B to T)
Fluid temperature range: -10 ^oC … +80 ^oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 10 to NAS 1638

Click for PDF catalogue

Directional control valves are one of the core elements in a hydraulic circuit. They help directing the fluid to different components in the system.

Directional control valves perform only three functions:

Stop fluid flow
Allow fluid flow
Change direction of fluid flow

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hidros provide sectional directional control valves with different capacities and spool control options such as hydraulic, pneumatic or with cables/joysticks.

Code	Number of levers	Nominal flow rate L/min	Max. pressure P port bar

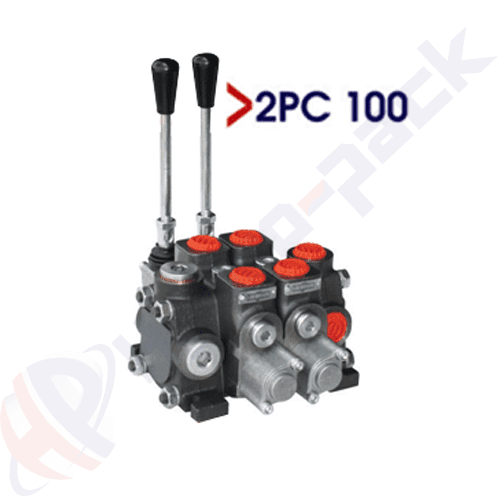

PC100N1-A1/T1-GKZ1	1	100	250

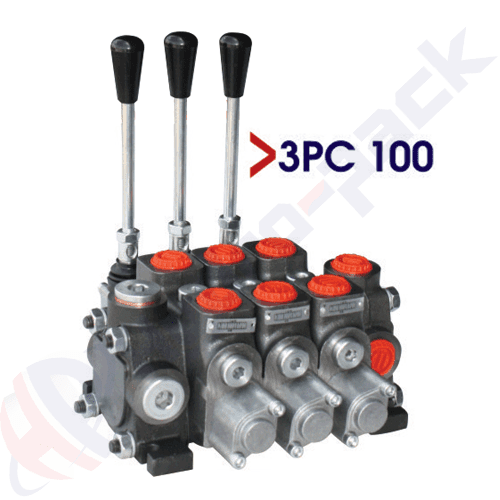

2PC100N1-2*PA1/T1-GKZ1	2	100	250

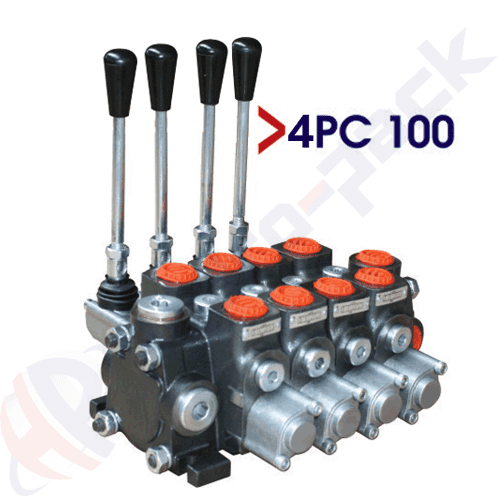

3PC100N1-3*PA1/T1-GKZ1	3	100	250

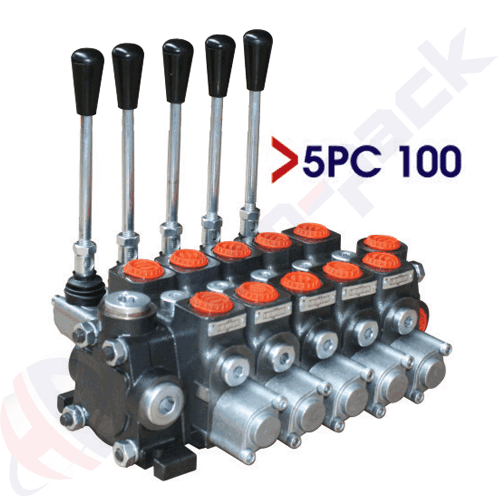

4PC100N1-4*PA1/T1-GKZ1	4	100	250
5PC100N1-5*PA1/T1-GKZ1	5	100	250

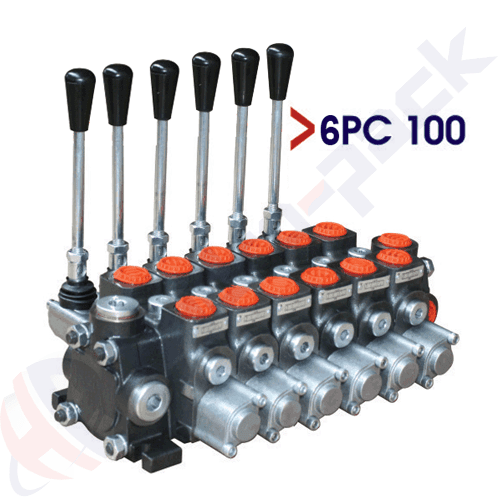

6PC100N1-6*PA1/T1-GKZ1	6	100	250

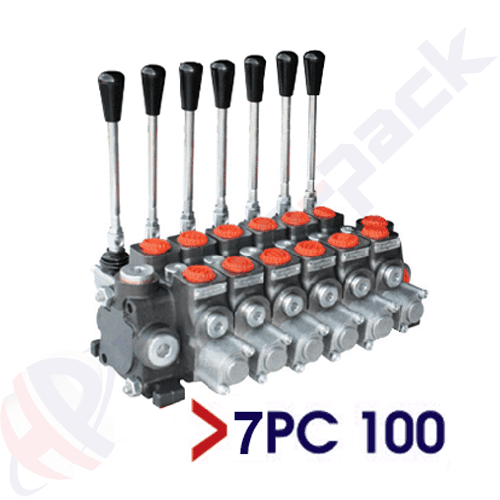

7PC100N1-7*PA1/T1-GKZ1	7	100	250

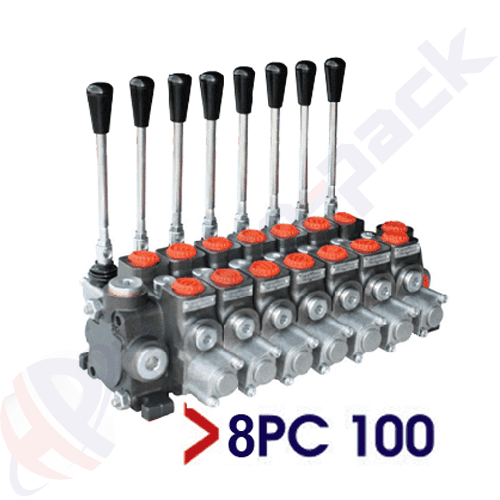

8PC100N1-8*PA1/T1-GKZ1	8	100	250
* Standard spool is open center “A” spool with spring return. Working port threads are G 3/4”. G 1/2” thread is also available. For different specifications please contact us.

Category: Directional Control Valves Tag: pc100
