P40 Series Monoblock Control Valves


Nominal flow rate: 40 liter/min
Max. Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 7
Leakage: 5 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 10 to NAS 1638

Click for PDF catalogue

Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components in the system.

Directional control valves perform only three functions:

  1.   Stop fluid flow
  2.   Allow fluid flow
  3.   Change direction of fluid flow.

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hidros provide monoblock directional control valves with different capacities and spool control options.


P40 CONTROL VALVE ACCESSORIES

P40 Carry Over

P40 Detent

P40 End Cap

P40 Joystick

P40 Lever Rubber

P40 Lever System

P40 Pneumatic



Code Number of levers Nominal flow rate
L/min
Max. pressure
P port
bar

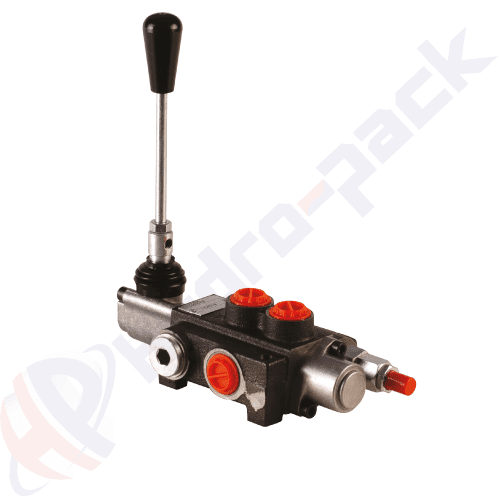

P40-A1-GKZ1 1 40 315

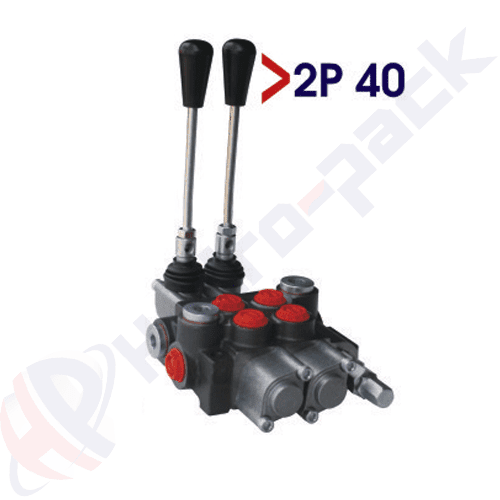

02P40-1A1A1-GKZ1 2 40 315

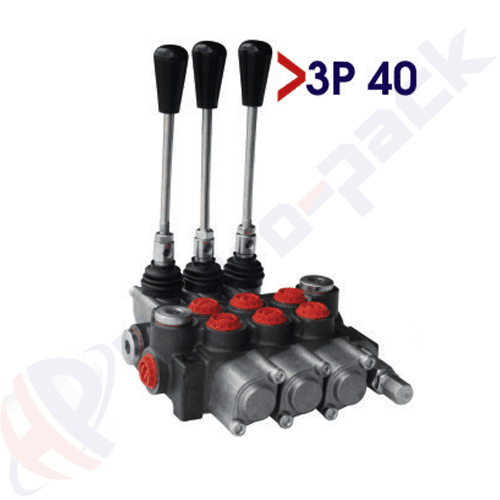

03P40-1A1A1A1-GKZ1 3 40 315

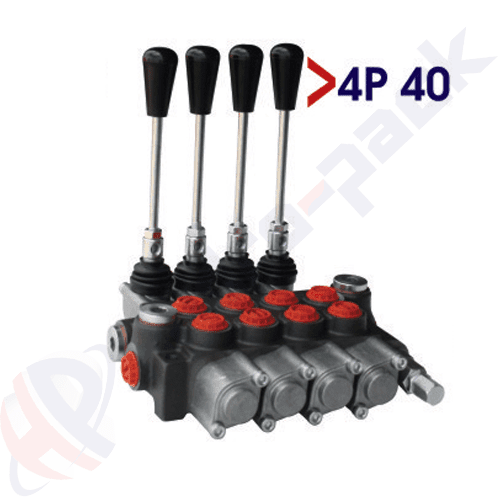

04P40-1A1A1A1A1-GKZ1 4 40 315

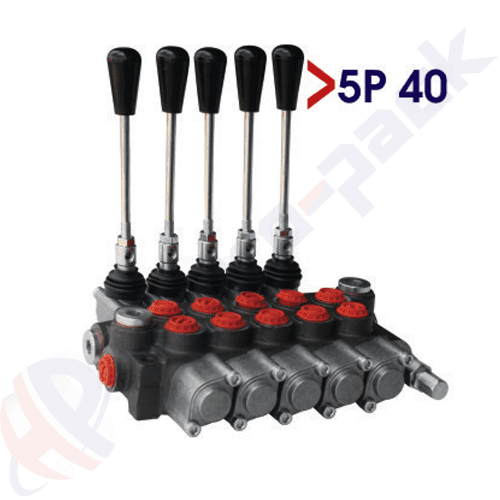

05P40-1A1A1A1A1A1-GKZ1 5 40 315

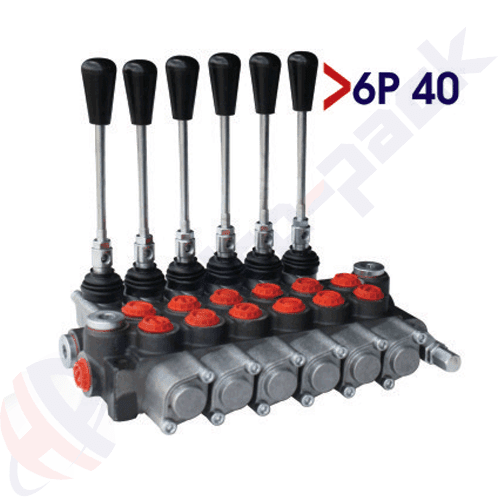

06P40-1A1A1A1A1A1A1-GKZ1 6 40 315

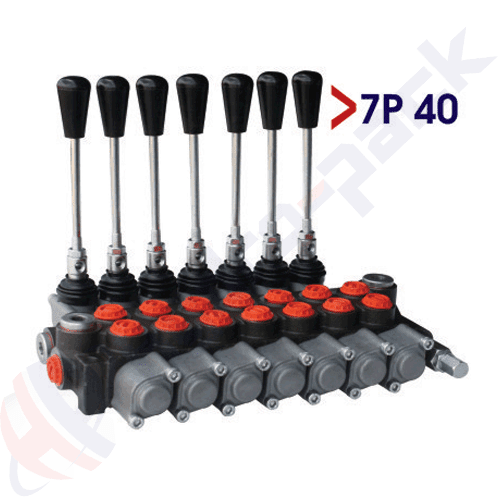

07P40-1A1A1A1A1A1A1A1-GKZ1 7 40 315
* Standard spool is open center “A” spool with spring return. Working port threads are G 3/8.
G 1/2 working ports are also available. For different specifications please contact us.
