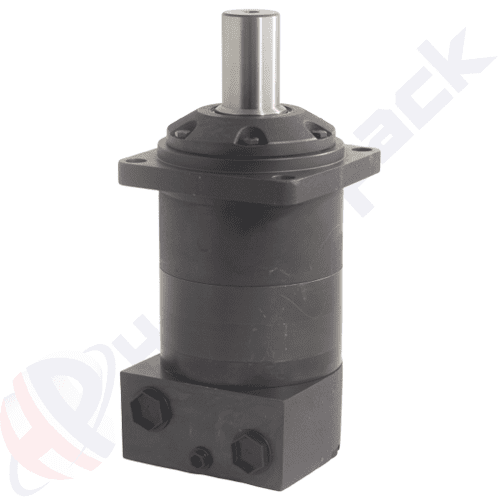

MVM Series Hydraulic Motors


Max. displacement: Up to 801.8 cc/rev
Max. torque: 259 daNm (Cont. operation), 340 daNm (Intermittent operation)
Max. output power: 112 kW
Max. pressure drop: 250 bar (Cont. operation), 350 bar (Intermittent operation)
Max. oil flow: 240 liter/min
Min. speed: 5 rpm

Click for PDF catalogue

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MVM series motors are suitable for continuous operation under rough operating conditions: e.g. high pressures, thin oil, or frequent reversals. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

Code Displacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MVM315C 314.5 636 115 250 200 270
MVM400C 400.9 500 144 250 200 270
MVM500C 499.6 400 180 250 200 270
MVM630C 629.1 315 227 250 200 270
MVM800C 801.8 250 259 225 200 270
* values are for continuous operation
Motors have 50 mm. straight shaft with parallel key as standard
Please check technical catalogue for dimensions and other options
