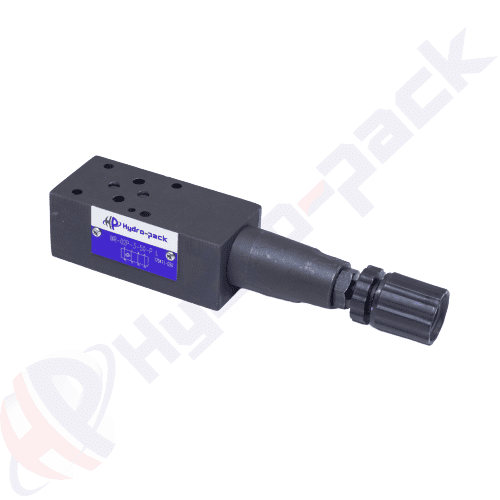

MR Series Modular Pressure Relief Valves

  • NG6 (CETOP 3) or NG10 (CETOP 5) mounting surfaces
  • From 35 liter/min up to 70 liter/min flow rate
  • Pressure 315 bar
  • Different setting range options (Standard is up to 315 bar)

Click for PDF catalogue

A relief valve or pressure relief valve (PRV) is a type of safety valve used to control or limit the pressure in a system.

Code Mounting surface Max. flow
liter/min		 Max. pressure
bar		 Pressure relief function Pressure setting range
MR-02A-3-50-A L NG6 (CETOP 3) 35 315 A port Up to 315 bar
MR-02B-3-50-B L NG6 (CETOP 3) 35 315 B port Up to 315 bar
MR-02P-3-50-P L NG6 (CETOP 3) 35 315 P port Up to 315 bar
MR-02W-3-50-AB LINE NG6 (CETOP 3) 35 315 A & B ports Up to 315 bar
MR-03A-3-50-A L NG10 (CETOP 5) 70 315 A port Up to 315 bar
MR-03B-3-50-B L NG10 (CETOP 5) 70 315 B port Up to 315 bar
MR-03P-3-50 NG10 (CETOP 5) 70 315 P port Up to 315 bar
MR-03W-3-50-AB LINE NG10 (CETOP 5) 70 315 A & B ports Up to 315 bar
Please contact us for different pressure setting ranges
