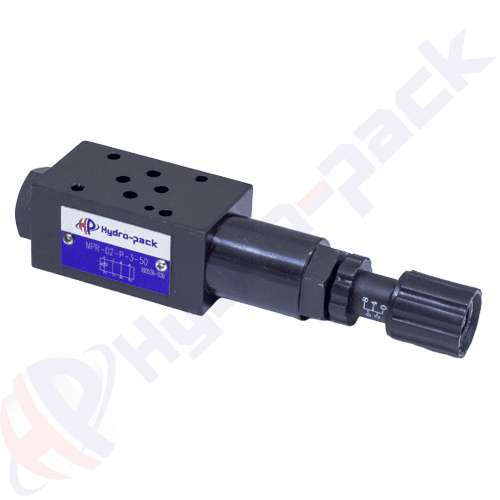

MPR Series Modular Pressure Reducing Valves


  • NG6 (CETOP 3) or NG10 (CETOP 5) mounting surfaces
  • From 35 liter/min up to 70 liter/min flow rate
  • Pressure 210 bar
  • Pressure reducing function on A port, B port or P port
  • Different setting options (Up to 210 bar as standard)

Click for PDF catalogue

A pressure reducing valve maintains lower pressures in branches of hydraulic systems. Basically, the pressure reducing valve controls the downstream pressure or outlet.

Code Mounting surface Max. flow
liter/min
Max. pressure
bar
Pressure reducing function Pressure setting range
MPR-02A-3A-50-A LINE NG6 (CETOP 3) 35 210 A port Up to 210 bar
MPR-02B-3A-50-B LINE NG6 (CETOP 3) 35 210 B port Up to 210 bar
MPR-02P-3-50P L NG6 (CETOP 3) 35 210 P port Up to 210 bar
MPR-03A-3A-50-A LINE NG10 (CETOP 5) 70 210 A port Up to 210 bar
MPR-03B-3A-50-B LINE NG10 (CETOP 5) 70 210 B port Up to 210 bar
MPR-03-P-3-50 NG10 (CETOP 5) 70 210 P port Up to 210 bar
Please contact us for different pressure setting ranges
