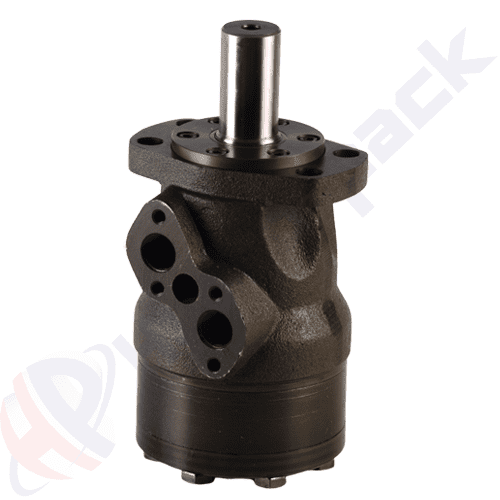

MH Series Hydraulic Motors


MH Series: MH200C,MH250C,MH315C,MH400C,MH500C

Max. displacement: Up to 502.4 cc/rev
Max. torque: 84 daNm (Cont. operation), 104 daNm (Intermittent operation)
Max. output power: 18.5 kW
Max. pressure drop: 175 bar (Cont. operation), 200 bar (Intermittent operation)
Max. oil flow: 90 liter/min
Min. speed: 5 rpm

Click for PDF catalogue

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. In MH series, the rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures.

Code Displacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MH200C 201.3 370 51 175 75 200
MH250C 252 295 61 175 75 200
MH315C 314.9 235 74 175 75 200
MH400C 396.8 185 84 155 75 200
MH500C 502.4 150 82 125 75 200
* values are for continuous operation
Motors have 32 mm. straight shaft with parallel key as standard
Please check technical catalogue for dimensions and other options
