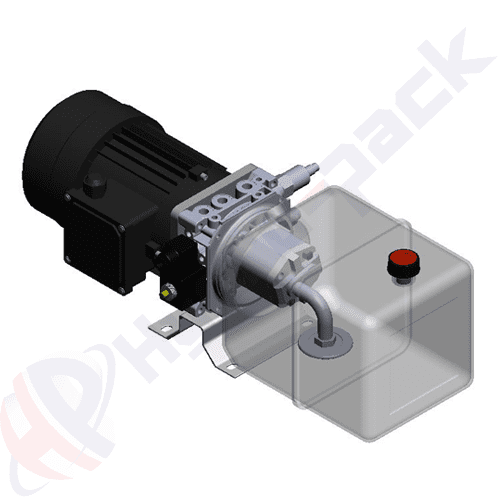

Hydraulic Power Packs for Dock Leveler

Electric motor: 1.1 kW 380 V, 2800 rpm, 50 Hz., S3 working duty
Pump: 1.8 cc/rev, 5 liter/min @ 2800 rpm
Oil tank: 8 liter plastic tank, horizontal mounting
Max pressure: 120 bar
Pressure setting of sequence valve: 90 bar

  • Suitable for applications where lip and ramp cylinders are single acting (Unit can also be used for applications where ramp cylinder is single and lip cylinder is double acting.)
  • 2/2 normally closed or normally open cartridge valve options
  • Flow control valves for ramp and lip cylinders

Click for Technical Drawing

Click for user manual_EN / Click for user manual_TR

Hydraulic power units (sometimes referred to as a hydraulic power pack) is a self-contained system that generally includes a motor, a fluid reservoir, and a pump. It works to apply the hydraulic pressure needed to drive motors, cylinders and other complementary parts of a given hydraulic system. Hidros provide mini power packs up to 5.5 kW in standard range. Hidros also offer wide range of solutions suitable for different applications such as tippers, dock levelers, car lifts, stackers, wheelchair lifts and more.

Specifications given above are for standard units and can change according to user demand. Please feel free to contact us.
