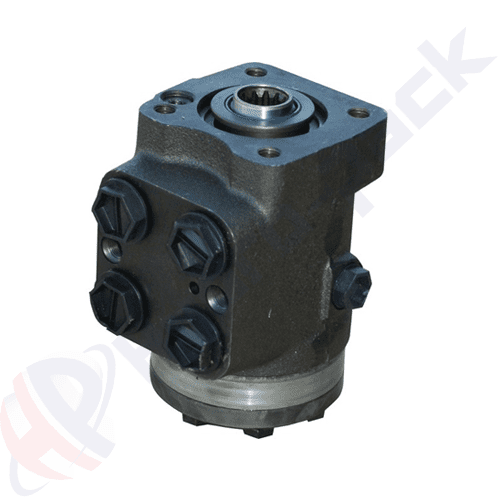

HKU…/5(T) series


Max. displacement: Up to 623.6 cc/rev
Hydraulic circuit: Closed center, non load reaction
Rated pressure: From 125 bar up to 175 bar
Max. oil flow: Up to 63 liter/min

Click for PDF catalogue

Hydrostatic steering is an hydraulic steering system that does not require mechanical steering linkage. In place of mechanical linkage, a steering unit and steering cylinders along with flexible hoses are used.

Hidros provide steering units which are used in industrial vehicles, agricultural tractors, marine ships, constructional equipment and servo-type systems where directional steering is needed.

The HKU(S)…/5(D)(T)(TU) range expands the steering units family with the “Closed Center – Non Reaction and Load Sensing Outlet” version (static and dynamic hydraulic connection to the priority valve) These steering units are used together with priority valves. Priority valves ensure adequate flow to steering unit.

Code Displacement
cc/rev
Rated flow
liter/min
Rated pressure
bar
HKU40/5T 39.6 4 125
HKU50/5T 49.5 5 150
HKU63/5T 65.6 6 175
HKU80/5T 79.2 8 175
HKU100/5T 99 10 175
HKU125/5T 123.8 13 175
HKU160/5T 158.4 16 175
HKU200/5T 198 20 175
HKU250/5T 247.5 25 175
HKU320/5T 316.8 32 175
HKU400/5T 396 40 175
HKU500/5T 495 50 175
HKU630/5T 623.6 63 175
