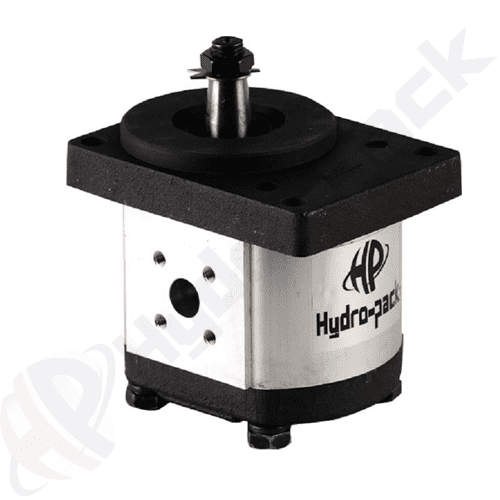

H20A(C)…X086

(0 customer reviews)

Displacement: From 4.5 cc/rev up to 28 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm

 Click for PDF catalogue

Fiyat Teklifi

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 20 hydraulic pumps with different specifications.

Code Displacement
cc/rev		 P1 pressure
bar		 Max. speed
rpm		 Rotation from shaft view
H20A4.5X086 | 20A4.5X086 4.5 250 3500 Anti-clockwise
H20C4.5X086 | 20C4.5X086 4.5 250 3500 Clockwise
H20A6.3X086 | 20A6.3X086 6.3 250 3500 Anti-clockwise
H20C6.3X086 | 20C6.3X086 6.3 250 3500 Clockwise
H20A8.2X086 | 20A8.2X086 8.2 250 3500 Anti-clockwise
H20C8.2X086 | 20C8.2X086 8.2 250 3500 Clockwise
H20A10X086 | 20A10X086 10 250 3500 Anti-clockwise
H20C10X086 | 20C10X086 10 250 3500 Clockwise
H20A11X086 | 20A11X086 11 250 3500 Anti-clockwise
H20C11X086 | 20C11X086 11 250 3500 Clockwise
H20A12X086 | 20A12X086 12 250 3500 Anti-clockwise
H20C12X086 | 20C12X086 12 250 3500 Clockwise
H20A14X086 | 20A14X086 14 250 3500 Anti-clockwise
H20C14X086 | 20C14X086 14 250 3500 Clockwise
H20A15X086 | 20A15X086 15 250 3000 Anti-clockwise
H20C15X086 | 20C15X086 15 250 3000 Clockwise
H20A16X086 | 20A16X086 16 250 2500 Anti-clockwise
H20C16X086 | 20C16X086 16 250 2500 Clockwise
H20A19X086 | 20A19X086 19 200 2500 Anti-clockwise
H20C19X086 | 20C19X086 19 200 2500 Clockwise
H20A22X086 | 20A22X086 22 180 2000 Anti-clockwise
H20C22X086 | 20C22X086 22 180 2000 Clockwise
H20A25X086 | 20A25X086 25 160 2000 Anti-clockwise
H20C25X086 | 20C25X086 25 160 2000 Clockwise
