Name: H20A(C)...X006
SKU: 6078
Rating: 5.00 (0 reviews)

H20A(C)…X006

Rated 5.00 out of 5 based on 1 customer rating

Group 20 X006 Pumps: 20A4.5X006,20C4.5X006,20A6.3X006,20C6.3X006,20A8.2X006,20C8.2X006,20A10X006,20C10X006,20A11X006,20C11X006,20A12X006,20C12X006,20A14X006,20C14X006,20A15X006,20C15X006,20A16X006,20C16X006,20A19X006,20C19X006,20A22X006,20C22X006,20A25X006,20C25X006,20A28X006,20C28X006

Displacement: From 4.5 cc/rev up to 28 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temperature range: -10 ^oC … +80 ^oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm

Click for PDF catalogue

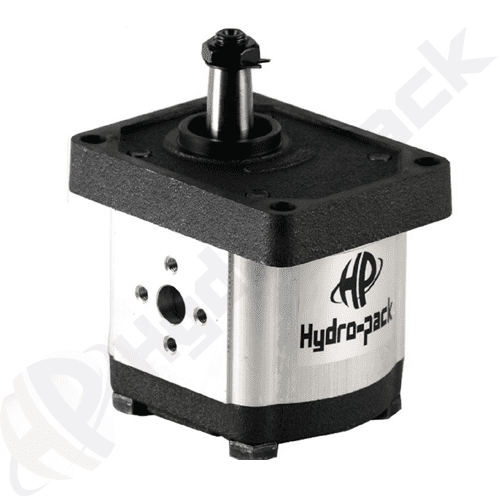

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 20 hydraulic pumps with different specifications.

Code	Displacement cc/rev	P1 pressure bar	Max. speed rpm	Rotation from shaft view
H20A4.5X006 \| 20A4.5X006	4.5	250	3500	Anti-clockwise
H20C4.5X006 \| 20C4.5X006	4.5	250	3500	Clockwise
H20A6.3X006 \| 20A6.3X006	6.3	250	3500	Anti-clockwise
H20C6.3X006 \| 20C6.3X006	6.3	250	3500	Clockwise
H20A8.2X006 \| 20A8.2X006	8.2	250	3500	Anti-clockwise
H20C8.2X006 \| 20C8.2X006	8.2	250	3500	Clockwise
H20A10X006 \| 20A10X006	10	250	3500	Anti-clockwise
H20C10X006 \| 20C10X006	10	250	3500	Clockwise
H20A11X006 \| 20A11X006	11	250	3500	Anti-clockwise
H20C11X006 \| 20C11X006	11	250	3500	Clockwise
H20A12X006 \| 20A12X006	12	250	3500	Anti-clockwise
H20C12X006 \| 20C12X006	12	250	3500	Clockwise
H20A14X006 \| 20A14X006	14	250	3500	Anti-clockwise
H20C14X006 \| 20C14X006	14	250	3500	Clockwise
H20A15X006 \| 20A15X006	15	250	3000	Anti-clockwise
H20C15X006 \| 20C15X006	15	250	3000	Clockwise
H20A16X006 \| 20A16X006	16	250	2500	Anti-clockwise
H20C16X006 \| 20C16X006	16	250	2500	Clockwise
H20A19X006 \| 20A19X006	19	200	2500	Anti-clockwise
H20C19X006 \| 20C19X006	19	200	2500	Clockwise
H20A22X006 \| 20A22X006	22	180	2000	Anti-clockwise
H20C22X006 \| 20C22X006	22	180	2000	Clockwise
H20A25X006 \| 20A25X006	25	160	2000	Anti-clockwise
H20C25X006 \| 20C25X006	25	160	2000	Clockwise
H20A28X006 \| 20A28X006	28	130	2000	Anti-clockwise
H20C28X006 \| 20C28X006	28	130	2000	Clockwise

Categories: Group 20, Hydraulic Pumps Tags: 20A4.5X006, 20A6.3X006, 20C4.5X006, 20C6.3X006, group20, x006
