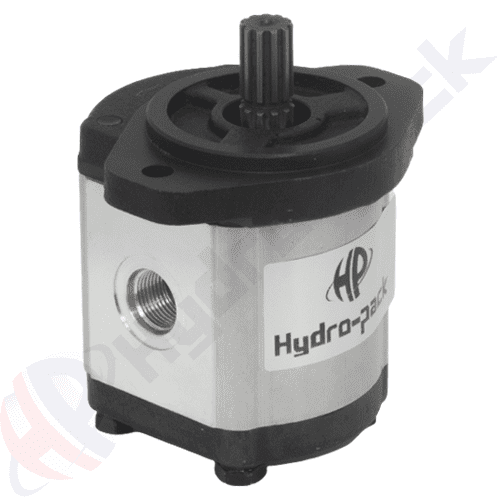

H20A(C )…X550HDU

Displacement: From 15 cc/rev up to 36 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temperature range: -10 ^oC … +80 ^oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm

Click for PDF catalogue

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 20 hydraulic pumps with different specifications.

Code	Displacement cc/rev	P1 pressure bar	Max. speed rpm	Rotation from shaft view
H20A15X550HDU \| 20A15X550HD	15	250	3500	Anti-clockwise
H20C15X550HDU \| 20C15X550HD	15	250	3500	Clockwise
H20A16X550HDU \| 20A16X550HD	16	250	3500	Anti-clockwise
H20C16X550HDU \| 20C16X550HD	16	250	3500	Clockwise
H20A17.3X550HDU \| 20A17.3X550HD	17.3	250	3500	Anti-clockwise
H20C17.3X550HDU \| 20C17.3X550HD	17.3	250	3500	Clockwise
H20A18.2X550HDU \| 20A18.2X550HD	18.2	230	3500	Anti-clockwise
H20C18.2X550HDU \| 20C18.2X550HD	18.2	230	3500	Clockwise
H20A19X550HDU \| 20A19X550HD	19	230	3500	Anti-clockwise
H20C19X550HDU \| 20C19X550HD	19	230	3500	Clockwise
H20A22X550HDU \| 20A22X550HD	22	200	3500	Anti-clockwise
H20C22X550HDU \| 20C22X550HD	22	200	3500	Clockwise
H20A25X550HDU \| 20A25X550HD	25	200	3500	Anti-clockwise
H20C25X550HDU \| 20C25X550HD	25	200	3500	Clockwise
H20A28X550HDU \| 20A28X550HD	28	170	2500	Anti-clockwise
H20C28X550HDU \| 20C28X550HD	28	150	2500	Clockwise
H20A32X550HDU \| 20A32X550HD	32	150	2500	Anti-clockwise
H20C32X550HDU \| 20C32X550HD	32	150	2500	Clockwise
H20A36X550HDU \| 20A36X550HD	36	120	2500	Anti-clockwise
H20C36X550HDU \| 20C36X550HD	36	120	2500	Clockwise

Categories: Group 20, Hydraulic Pumps Tags: group 20, X550HDU
