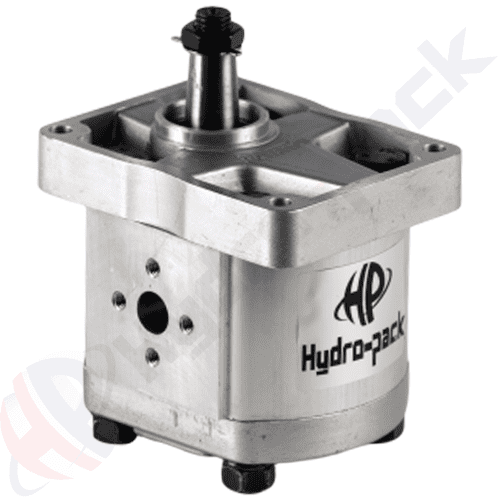

Group 2 Hydraulic Gear Pumps


Displacement: From 4.5 cc/rev up to 19 cc/rev
Nominal pressure: Up to 200 bar
Max. speed: Up to 3000 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 15-25 µm

*Ports are flanged as standard. For BSP and Metric threaded ports, please contact us.

 Click for PDF catalogue

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 2 aluminum gear pumps with different displacements.

Code Displacement
cc/rev
P1 pressure
bar
Max. speed
rpm
Rotation from shaft view
A10XH 4.5 200 3000 Anti-clockwise
C10XH 4.5 200 3000 Clockwise
A14XH 6.3 200 3000 Anti-clockwise
C14XH 6.3 200 3000 Clockwise
A18XH 8.2 200 3000 Anti-clockwise
C18XH 8.2 200 3000 Clockwise
A25XH 11.3 200 3000 Anti-clockwise
C25XH 11.3 200 3000 Clockwise
A33XH 15 200 3000 Anti-clockwise
C33XH 15 200 3000 Clockwise
A42XH 19 200 3000 Anti-clockwise
C42XH 19 200 3000 Clockwise
*Ports are flanged ports as standard.
For BSP threaded ports, ordering code should be A(C)…XT
For Metric threaded ports, ordering code should be A(C)…XTM.
