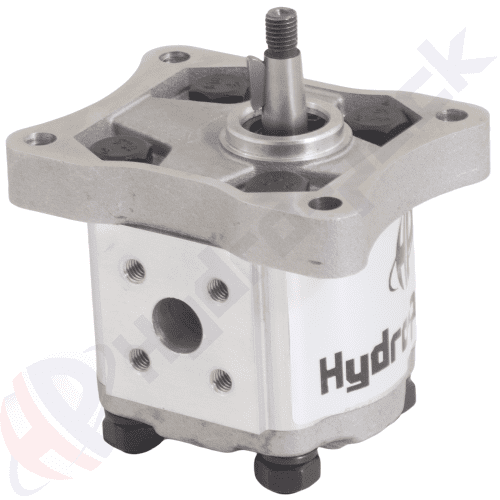

Group 1 Hydraulic Gear Pumps


Displacement: From 1.22 cc/rev up to 5.7 cc/rev
Nominal pressure: Up to 200 bar
Max. speed: Up to 6000 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 15-25 µm

*Ports are flanged as standard. For BSP and Metric threaded ports, please contact us.

 Click for PDF catalogue

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 1 aluminum gear pumps with different displacements.

Code Displacement
cc/rev
P1 pressure
bar
Max. speed
rpm
Rotation from shaft view
A027XH 1.22 200 6000 Anti-clockwise
C027XH 1.22 200 6000 Clockwise
A036XH 1.63 200 6000 Anti-clockwise
C036XH 1.63 200 6000 Clockwise
A048XH 2.18 200 6000 Anti-clockwise
C048XH 2.18 200 6000 Clockwise
A060XH 2.72 200 6000 Anti-clockwise
C060XH 2.72 200 6000 Clockwise
A072XH 3.27 200 5000 Anti-clockwise
C072XH 3.27 200 5000 Clockwise
A084XH 3.81 200 4500 Anti-clockwise
C084XH 3.81 200 4500 Clockwise
A096XH 4.36 200 4000 Anti-clockwise
C096XH 4.36 200 4000 Clockwise
A12XH 5.7 200 3500 Anti-clockwise
C12XH 5.7 160 3500 Clockwise
