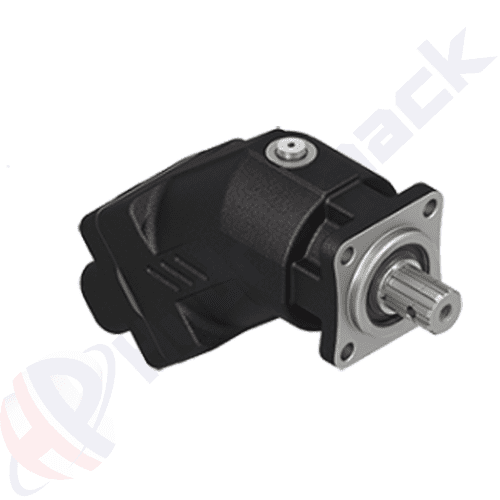

FEYZ Series Bent Axis Piston Pumps


Displacement: From 23 cc/rev up to 125 cc/rev
Max. cont. pressure: Up to 350 bar
Max. cont. speed: Up to 3050 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)

  • Unidirectonal
  • Cast iron or aluminum body options

Click for PDF catalogue

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer wide range of cast iron gear pumps and piston pumps with different specifications for trucks and mobile applications.

Code Displacement
cc/rev
Max. continuous pressure
bar
Max. continuous speed
rpm
Front cover
ISO FEYZ 23 (L, R) 23 350 3050 4 holes ISO flange
ISO FEYZ 32 (L, R) 32 350 2750 4 holes ISO flange
ISO FEYZ 45 (L, R) 45 350 2650 4 holes ISO flange
ISO FEYZ 56 (L, R) 56 350 2550 4 holes ISO flange
ISO FEYZ 63 (L, R) 63 350 2200 4 holes ISO flange
ISO FEYZ 80 (L, R) 80 350 2150 4 holes ISO flange
ISO FEYZ 107 (L, R) 107 350 2000 4 holes ISO flange
ISO FEYZ 125 (L, R) 125 250 1750 4 holes ISO flange
L: Left, R: Right
Cast iron and aluminum body options
Please check technical catalogue for dimensions
