Directional control valves are one of the core elements in a hydraulic circuit. They help directing the fluid to different components in the system.
Directional control valves perform only three functions:
- Stop fluid flow
- Allow fluid flow
- Change direction of fluid flow

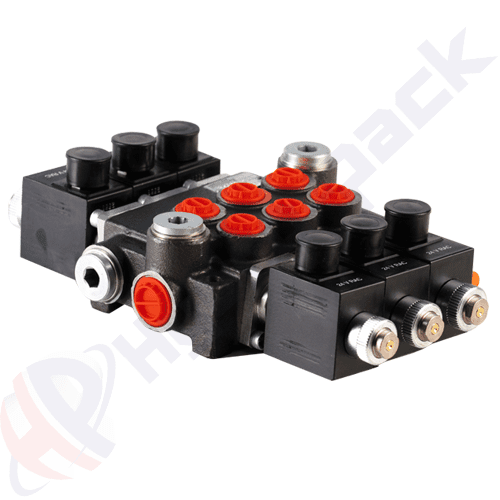

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hidros provide solenoid operated on-off directional control valves with different capacities and spool types.
| Code |
Number of spools |
Nominal flow rate
L/min |
Max. pressure
P port
bar |
Voltage
V |
| Z50-A-ES3-12VDC-G |
1 |
50 |
315 |
12 |
| Z50-A-ES3-24VDC-G |
1 |
50 |
315 |
24 |
| 2Z50-AA-ES3-12VDC-G |
2 |
50 |
315 |
12 |
| 2Z50-AA-ES3-24VDC-G |
2 |
50 |
315 |
24 |
| 3Z50-AAA-ES3-12VDC-G |
3 |
50 |
315 |
12 |
| 3Z50-AAA-ES3-24VDC-G |
3 |
50 |
315 |
24 |
| 4Z50-AAAA-ES3-12VDC-G |
4 |
50 |
315 |
12 |
| 4Z50-AAAA-ES3-24VDC-G |
4 |
50 |
315 |
24 |
| 5Z50-AAAAA-ES3-12VDC-G |
5 |
50 |
315 |
12 |
| 5Z50-AAAAA-ES3-24VDC-G |
5 |
50 |
315 |
24 |
| 6Z50-AAAAAA-ES3-12VDC-G |
6 |
50 |
315 |
12 |
| 6Z50-AAAAAA-ES3-24VDC-G |
6 |
50 |
315 |
24 |
| 7Z50-AAAAAAA-ES3-12VDC-G |
7 |
50 |
315 |
12 |
| 7Z50-AAAAAAA-ES3-24VDC-G |
7 |
50 |
315 |
24 |
* Standard spool is open center “A” spool with spring return. Working port threads are G 3/8”.
For different specifications please contact us. |
