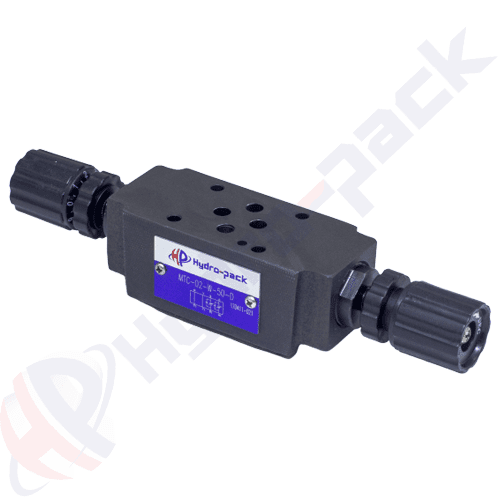

MTC Series Modular Flow Control Valves

MTC Series Modular Flow Control Valves

  • NG6 (CETOP 3) or NG10 (CETOP 5) mounting surfaces
  • From 30 liter/min up to 50 liter/min flow rate
  • Pressure 315 bar
  • Flow control function on A port, B port or both ports
  • Meter out type as standard

Click for PDF catalogue

Fiyat Teklifi

Flow control valves are used to adjust cylinder speed. Modular flow control valves are with a check valve for reverse free flow.

Code Mounting surface Max. flow
liter/min		 Max. pressure
bar		 Flow control function Cracking pressure
bar
MTC-02-A-50-A LINE NG6 (CETOP 3) 30 315 A port 0.5
MTC-02-B-50-B LINE NG6 (CETOP 3) 30 315 B port 0.5
MTC-02-W-50-D NG6 (CETOP 3) 30 315 A & B ports 0.5
MTC-03-A-50-A LINE NG10 (CETOP 5) 50 315 A port 0.5
MTC-03-B-50-B LINE NG10 (CETOP 5) 50 315 B port 0.5
MTC-03-W-50-D NG10 (CETOP 5) 50 315 A & B ports 0.5
Throttle direction is “meter out” type
Please contact us for different cracking pressure values
