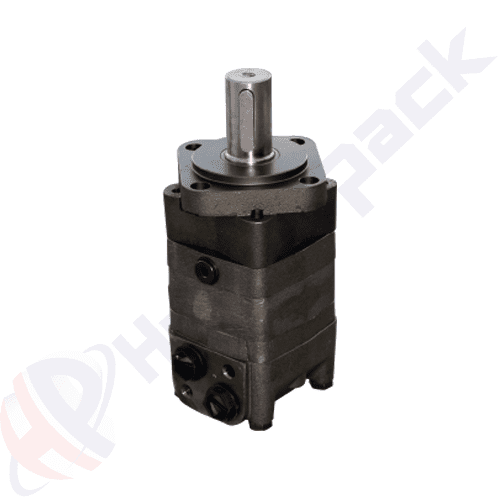

MS Series Hydraulic Motors


MS Series: MS80C,MS100C,MS125C,MS160C,MS200C,MS250C,MS315C,MS400C,MS475C,MS525C,MS565C

Max. displacement: Up to 564.9 cc/rev
Max. torque: 85 daNm (Cont. operation), 99 daNm (Intermittent operation)
Max. output power: 23 kW
Max. pressure drop: 210 bar (Cont. operation), 275 bar (Intermittent operation)
Max. oil flow: 90 liter/min
Min. speed: 5 rpm

Click for PDF catalogue

Fiyat Teklifi

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MS series motors are suitable for continuous operation under rough operating conditions: e.g. high pressures, thin oil, or frequent reversals. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

Code Displacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MS80C 80.5 810 24 210 65 230
MS100C 100 750 30.5 210 75 230
MS125C 125.7 600 37.5 210 75 230
MS160C 159.7 470 49 210 75 230
MS200C 200 375 61 210 75 230
MS250C 250 300 72 200 75 230
MS315C 314.9 240 82.5 200 75 230
MS400C 397 190 86.5 160 75 230
MS475C 474.6 160 85 130 75 230
MS525C 522.7 145 85 115 75 230
MS565C 564.9 130 85 105 75 230
* values are for continuous operation
Motors have 32 mm. straight shaft with parallel key as standard
Please check technical catalogue for dimensions and other options
