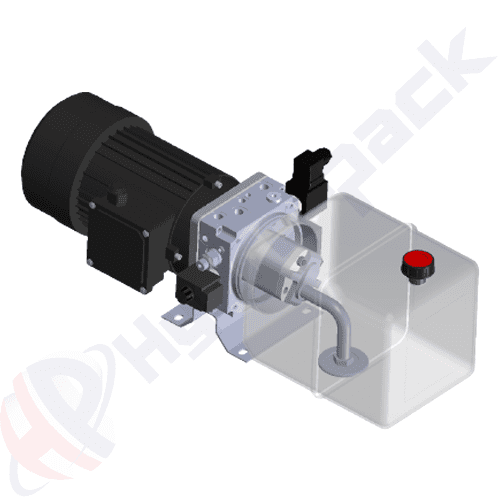

Hydraulic Power Packs for Telescopic Dock Leveler


Electric motor: 1.1 kW 380 V, 2800 rpm, 50 Hz., S3 working duty
Pump: 1.8 cc/rev, 5 liter/min @ 2800 rpm
Oil tank: 6 liter plastic tank, horizontal mounting
Max pressure: 120 bar

  • Suitable for applications where main cylinder is single acting and lip cylinder is double acting
  • Cylinders can be operated independent of each other
  • Lip cylinder can be stopped at desired position
  • 12 V, 24 V or 220 V voltage options for cartridge coils
  • Steel or plastic tank options
  • Flow control valves for main and lip cylinders
  • Main relief valve and secondary relief valve for lip cylinder

Click for Technical Drawing

Click for user manual

Fiyat Teklifi

Hydraulic power units (sometimes referred to as a hydraulic power pack) is a self-contained system that generally includes a motor, a fluid reservoir, and a pump. It works to apply the hydraulic pressure needed to drive motors, cylinders and other complementary parts of a given hydraulic system. Hidros provide mini power packs up to 5.5 kW in standard range. Hidros also offer wide range of solutions suitable for different applications such as tippers, dock levelers, car lifts, stackers, wheelchair lifts and more.

Specifications given above are for standard units and can change according to user demand. Please feel free to contact us.
