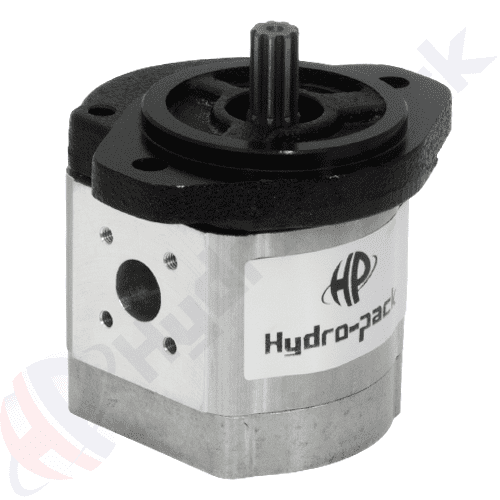

H20A(C )…X468

Displacement: From 4.5 cc/rev up to 28 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temperature range: -10 ^oC … +80 ^oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm

Click for PDF catalogue

Fiyat Teklifi

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 20 hydraulic pumps with different specifications.

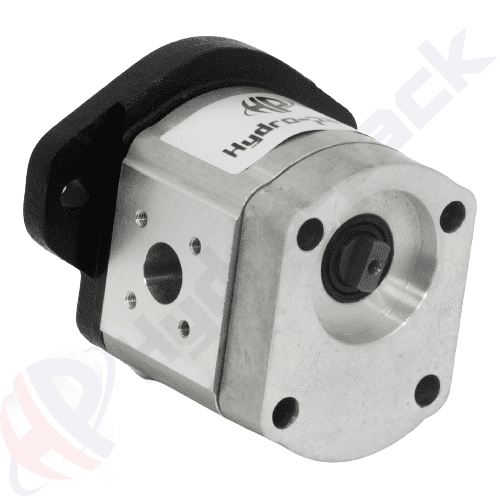

X468 series pumps are front section of double tandem pumps. They can be assembled with Group 20 X066, X097 series.

Code	Displacement cc/rev	P1 pressure bar	Max. speed rpm	Rotation from shaft view
H20A4.5X468 \| 20A4.5X468	4.5	250	3500	Anti-clockwise
H20C4.5X468 \| 20C4.5X468	4.5	250	3500	Clockwise
H20A6.3X468 \| 20A6.3X468	6.3	250	3500	Anti-clockwise
H20C6.3X468 \| 20C6.3X468	6.3	250	3500	Clockwise
H20A8.2X468 \| 20A8.2X468	8.2	250	3500	Anti-clockwise
H20C8.2X468 \| 20C8.2X468	8.2	250	3500	Clockwise
H20A10X468 \| 20A10X468	10	250	3500	Anti-clockwise
H20C10X468 \| 20C10X468	10	250	3500	Clockwise
H20A11X468 \| 20A11X468	11	250	3500	Anti-clockwise
H20C11X468 \| 20C11X468	11	250	3500	Clockwise
H20A12X468 \| 20A12X468	12	250	3500	Anti-clockwise
H20C12X468 \| 20C12X468	12	250	3500	Clockwise
H20A14X468 \| 20A14X468	14	250	3500	Anti-clockwise
H20C14X468 \| 20C14X468	14	250	3500	Clockwise
H20A15X468 \| 20A15X468	15	250	3000	Anti-clockwise
H20C15X468 \| 20C15X468	15	250	3000	Clockwise
H20A16X468 \| 20A16X468	16	250	2500	Anti-clockwise
H20C16X468 \| 20C16X468	16	250	2500	Clockwise
H20A19X468 \| 20A19X468	19	200	2500	Anti-clockwise
H20C19X468 \| 20C19X468	19	200	2500	Clockwise
H20A22X468 \| 20A22X468	22	180	2000	Anti-clockwise
H20C22X468 \| 20C22X468	22	180	2000	Clockwise
H20A25X468 \| 20A25X468	25	160	2000	Anti-clockwise
H20C25X468 \| 20C25X468	25	160	2000	Clockwise
H20A28X468 \| 20A28X468	28	130	2000	Anti-clockwise
H20C28X468 \| 20C28X468	28	130	2000	Clockwise
Major diameter of shaft is 15,45 mm.
