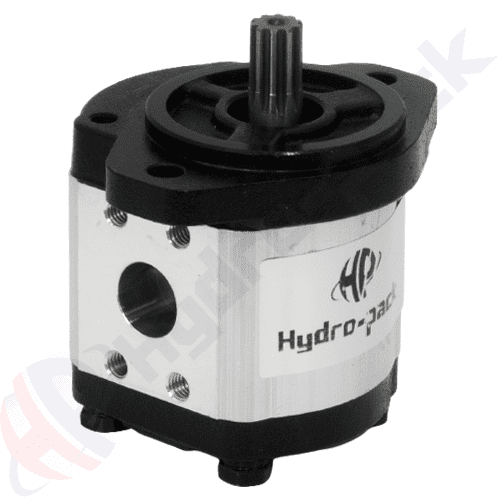

H20A(C)…X464


Displacement: From 15 cc/rev up to 36 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm

 Click for PDF catalogue

Fiyat Teklifi

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 20 hydraulic pumps with different specifications.

Code Displacement
cc/rev
P1 pressure
bar
Max. speed
rpm
Rotation from shaft view
H20A15X464 | 20A15X464 15 250 3500 Anti-clockwise
H20C15X464 | 20C15X464 15 250 3500 Clockwise
H20A16X464 | 20A16X464 16 250 3500 Anti-clockwise
H20C16X464 | 20C16X464 16 250 3500 Clockwise
H20A17.3X464 | 20A17.3X464 17.3 230 3500 Anti-clockwise
H20C17.3X464 | 20C17.3X464 17.3 230 3500 Clockwise
H20A18.2X464 | 20A18.2X464 18.2 210 3500 Anti-clockwise
H20C18.2X464 | 20C18.2X464 18.2 210 3500 Clockwise
H20A19X464 | 20A19X464 19 200 3500 Anti-clockwise
H20C19X464 | 20C19X464 19 200 3500 Clockwise
H20A22X464 | 20A22X464 22 180 3500 Anti-clockwise
H20C22X464 | 20C22X464 22 180 3500 Clockwise
H20A25X464 | 20A25X464 25 160 3500 Anti-clockwise
H20C25X464 | 20C25X464 25 160 3500 Clockwise
H20A28X464 | 20A28X464 28 130 2500 Anti-clockwise
H20C28X464 | 20C28X464 28 130 2500 Clockwise
H20A32X464 | 20A32X464 32 120 2500 Anti-clockwise
H20C32X464 | 20C32X464 32 120 2500 Clockwise
H20A36X464 | 20A36X464 36 100 2500 Anti-clockwise
H20C36X464 | 20C36X464 36 100 2500 Clockwise
