H20A(C )…X156


Displacement: From 4.5 cc/rev up to 25 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm

 Click for PDF catalogue

Fiyat Teklifi

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 20 hydraulic pumps with different specifications.

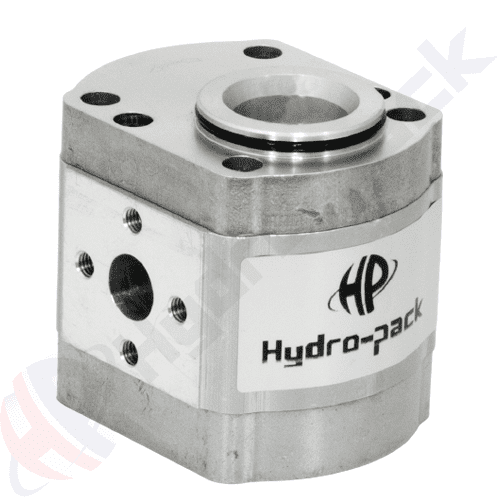

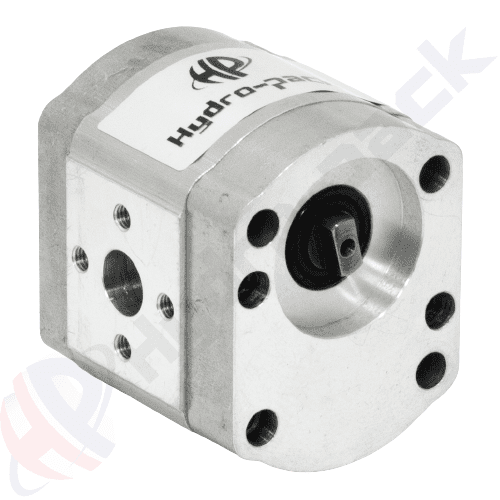

X156 series pumps are middle section of triple tandem pumps.

Code Displacement
cc/rev
P1 pressure
bar
Max. speed
rpm
Rotation from shaft view
H20A4.5X156 | 20A4.5X156 4.5 250 3500 Anti-clockwise
H20C4.5X156 | 20C4.5X156 4.5 250 3500 Clockwise
H20A6.3X156 | 20A6.3X156 6.3 250 3500 Anti-clockwise
H20C6.3X156 | 20C6.3X156 6.3 250 3500 Clockwise
H20A8.2X156 | 20A8.2X156 8.2 250 3500 Anti-clockwise
H20C8.2X156 | 20C8.2X156 8.2 250 3500 Clockwise
H20A10X156 | 20A10X156 10 250 3500 Anti-clockwise
H20C10X156 | 20C10X156 10 250 3500 Clockwise
H20A11X156 | 20A11X156 11 250 3500 Anti-clockwise
H20C11X156 | 20C11X156 11 250 3500 Clockwise
H20A12X156 | 20A12X156 12 250 3500 Anti-clockwise
H20C12X156 | 20C12X156 12 250 3500 Clockwise
H20A14X156 | 20A14X156 14 250 3500 Anti-clockwise
H20C14X156 | 20C14X156 14 250 3500 Clockwise
H20A15X156 | 20A15X156 15 250 3000 Anti-clockwise
H20C15X156 | 20C15X156 15 250 3000 Clockwise
H20A16X156 | 20A16X156 16 250 2500 Anti-clockwise
H20C16X156 | 20C16X156 16 250 2500 Clockwise
H20A19X156 | 20A19X156 19 200 2500 Anti-clockwise
H20C19X156 | 20C19X156 19 200 2500 Clockwise
H20A22X156 | 20A22X156 22 180 2000 Anti-clockwise
H20C22X156 | 20C22X156 22 180 2000 Clockwise
H20A25X156 | 20A25X156 25 160 2000 Anti-clockwise
H20C25X156 | 20C25X156 25 160 2000 Clockwise
