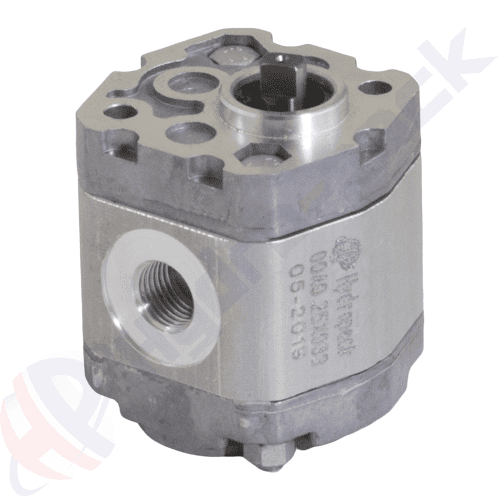

H00A(C )…X033

Displacement: From 0.25 cc/rev up to 2 cc/rev
Nominal pressure: Up to 200 bar
Max. speed: Up to 3500 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 15-25 µm

Click for PDF catalogue

Fiyat Teklifi

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer group 00 hydraulic pumps with different specifications.

Code Displacement
cc/rev		 P1 pressure
bar		 Max. speed
rpm		 Rotation from shaft view
H00A0.25X033 | 00A0.25X033 0.25 200 3500 Anti-clockwise
H00C0.25X033 | 00C0.25X033 0.25 200 3500 Clockwise
H00A0.5X033 | 00A0.5X033 0.5 200 3500 Anti-clockwise
H00C0.5X033 | 00C0.5X033 0.5 200 3500 Clockwise
H00A0.75X033 | 00A0.75X033 0.75 200 3500 Anti-clockwise
H00C0.75X033 | 00C0.75X033 0.75 200 3500 Clockwise
H00A1X033 | 00A1X033 1 200 3500 Anti-clockwise
H00C1X033 | 00C1X033 1 200 3500 Clockwise
H00A1.25X033 | 00A1.25X033 1.25 200 3000 Anti-clockwise
H00C1.25X033 | 00C1.25X033 1.25 200 3000 Clockwise
H00A1.5X033 | 00A1.5X033 1.5 175 2500 Anti-clockwise
H00C1.5X033 | 00C1.5X033 1.5 175 2500 Clockwise
H00A1.75X033 | 00A1.75X033 1.75 160 2500 Anti-clockwise
H00C1.75X033 | 00C1.75X033 1.75 160 2500 Clockwise
H00A2X033 | 00A2X033 2 160 2000 Anti-clockwise
H00C2X033 | 00C2X033 2 160 2000 Clockwise
