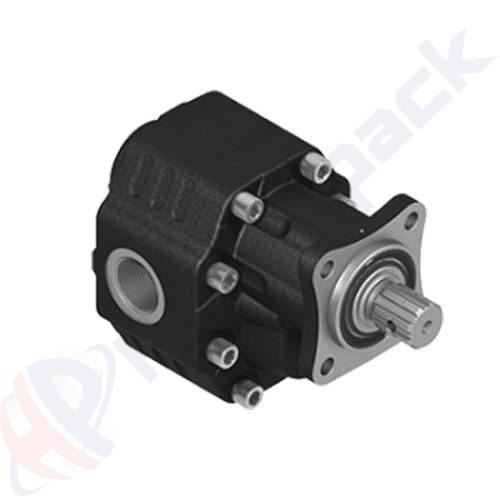

Group 40 GANI Series Cast Iron Gear Pumps

Displacement: From 63 cc/rev up to 151 cc/rev
Max. cont. pressure: Up to 280 bar
Max. cont. speed: Up to 1800 rpm
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)

  • Unidirectional
  • ISO, UNI, SAE C series flanges

Click for PDF catalogue

Fiyat Teklifi

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros offer wide range of cast iron gear pumps and piston pumps with different specifications for trucks and mobile applications.

Code Displacement
cc/rev		 Max. continuous pressure
bar		 Max. continuous speed
rpm		 Front cover
ISO GANI 63 (L, R) 63 280 1800 4 holes ISO flange
ISO GANI 73 (L, R) 73 275 1800 4 holes ISO flange
ISO GANI 87 (L, R) 87 265 1800 4 holes ISO flange
ISO GANI 109 (L, R) 109 240 1800 4 holes ISO flange
ISO GANI 133 (L, R) 133 230 1500 4 holes ISO flange
ISO GANI 151 (L, R) 151 180 1500 4 holes ISO flange
L: Left, R: Right
Please check technical catalogue for dimensions and other flange types.



Code Displacement
cc/rev		 Max. continuous pressure
bar		 Max. continuous speed
rpm		 Front cover
UNI GANI 63 (L, R) 63 280 1800 3 holes UNI flange
UNI GANI 73 (L, R) 73 275 1800 3 holes UNI flange
UNI GANI 87 (L, R) 87 265 1800 3 holes UNI flange
UNI GANI 109 (L, R) 109 240 1800 3 holes UNI flange
UNI GANI 133 (L, R) 133 230 1500 3 holes UNI flange
UNI GANI 151 (L, R) 151 180 1500 3 holes UNI flange
L: Left, R: Right
Please check technical catalogue for dimensions and other flange types.



Code Displacement
cc/rev		 Max. continuous pressure
Front pump
bar		 Max. continuous pressure
Rear pump
bar		 Max. continuous speed
rpm
ASAE GANI 151 + 27 TANDEM (L, R) 151 + 27 180 290 1500
L: Left, R: Right (From shaft view)
Please check technical catalogue for dimensions
